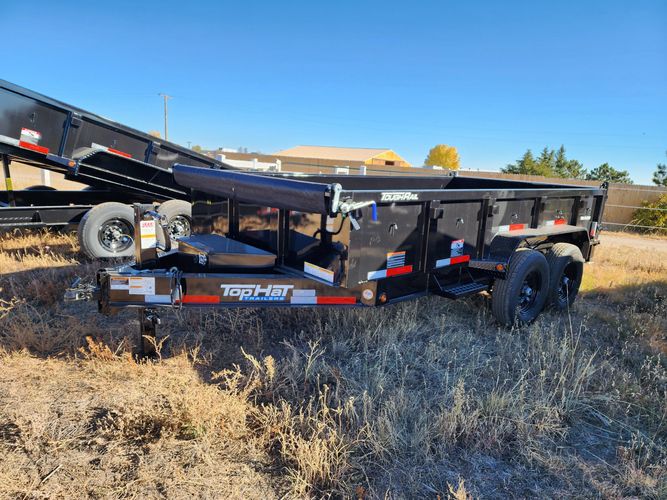

2024 Top Hat 14'x83" 14k gvwr Tarp kit 2 way spreader gate
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Coupler: 2 5/16" Round Adjustable on GN
Jack: 10000# Drop Leg
Jack: Dual 10000# Drop Leg on GN
Fenders: HD Diamond Plate Straight
Floor: 7 GA Sheet Metal
Width: 83" Inside Box
Brake: Electric All Wheel
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Doors: Double Action (Dual Swing Out/Spreader Gate. NA w/High Sides.)
Ramp Pockets w/6' Ramps
5/8" D-Rings in Box (4)
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
Tarp (Includes Installation)
Color: Black
Frame Structure
Frame & Tongue: 8" I-Beam Integrated
Neck & Risers: (GN Model) 10" I-Beam
Sides: 24" Tall 10 GA Sheet Metal w/Toprail
Toprail: Rigid 3x2x7 GA Rectangular Tubing
Uprights: 24" OC
Crossmembers: 3" Channel 16" OC
Tarp Bracket & Tie Downs
Loading Height 4" Lower than DP Model
Dump Components
Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Options
DPX 140 Options
Deduct 6' Ramps
3' High Sides
4' High Sides
Gas Engine Powered Pump in Lieu of Electric Pump
Spare ST235/80R/16 LRE on 8-Hole
Hydraulic Jack
Solar Battery Charger
