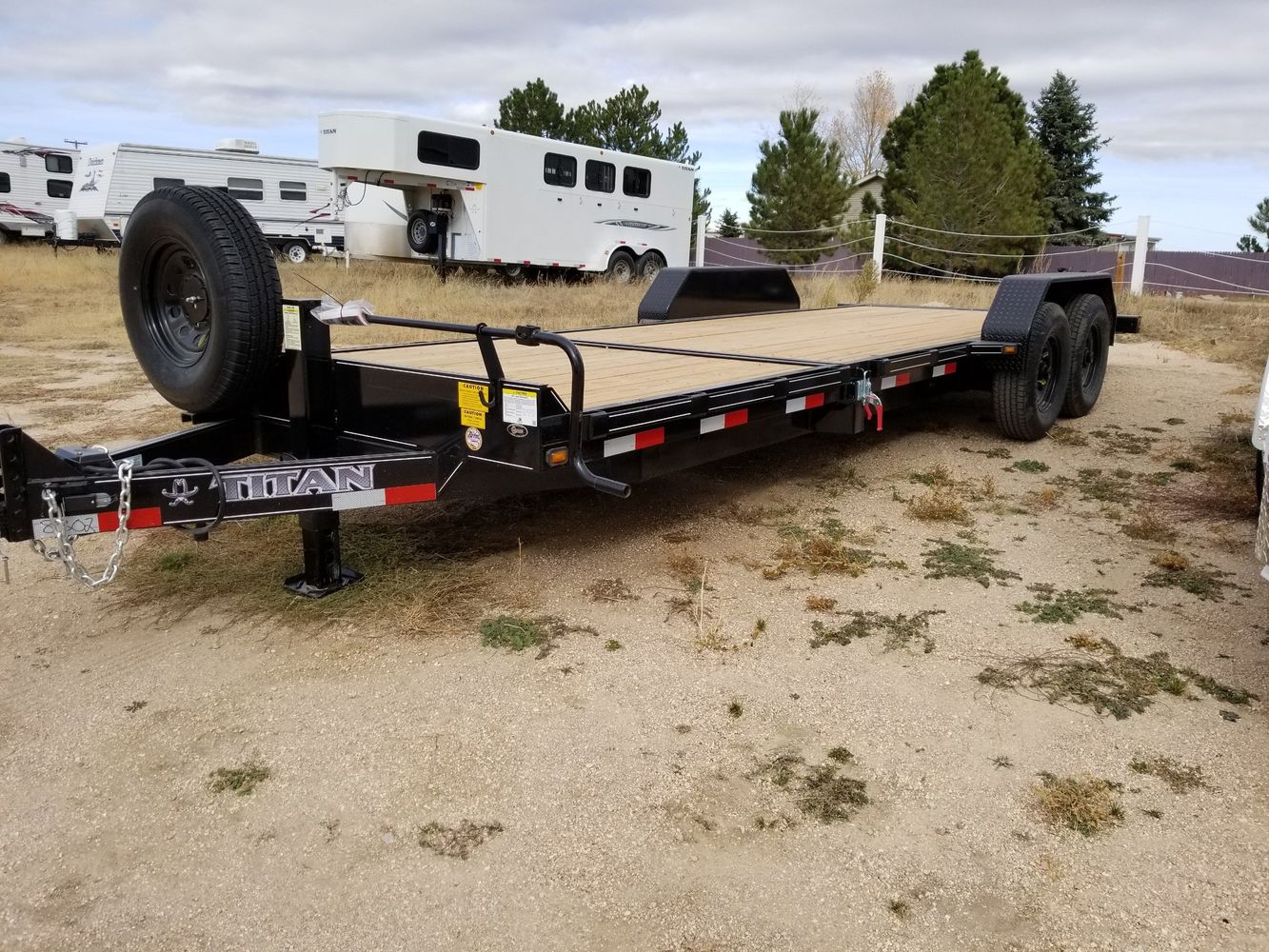

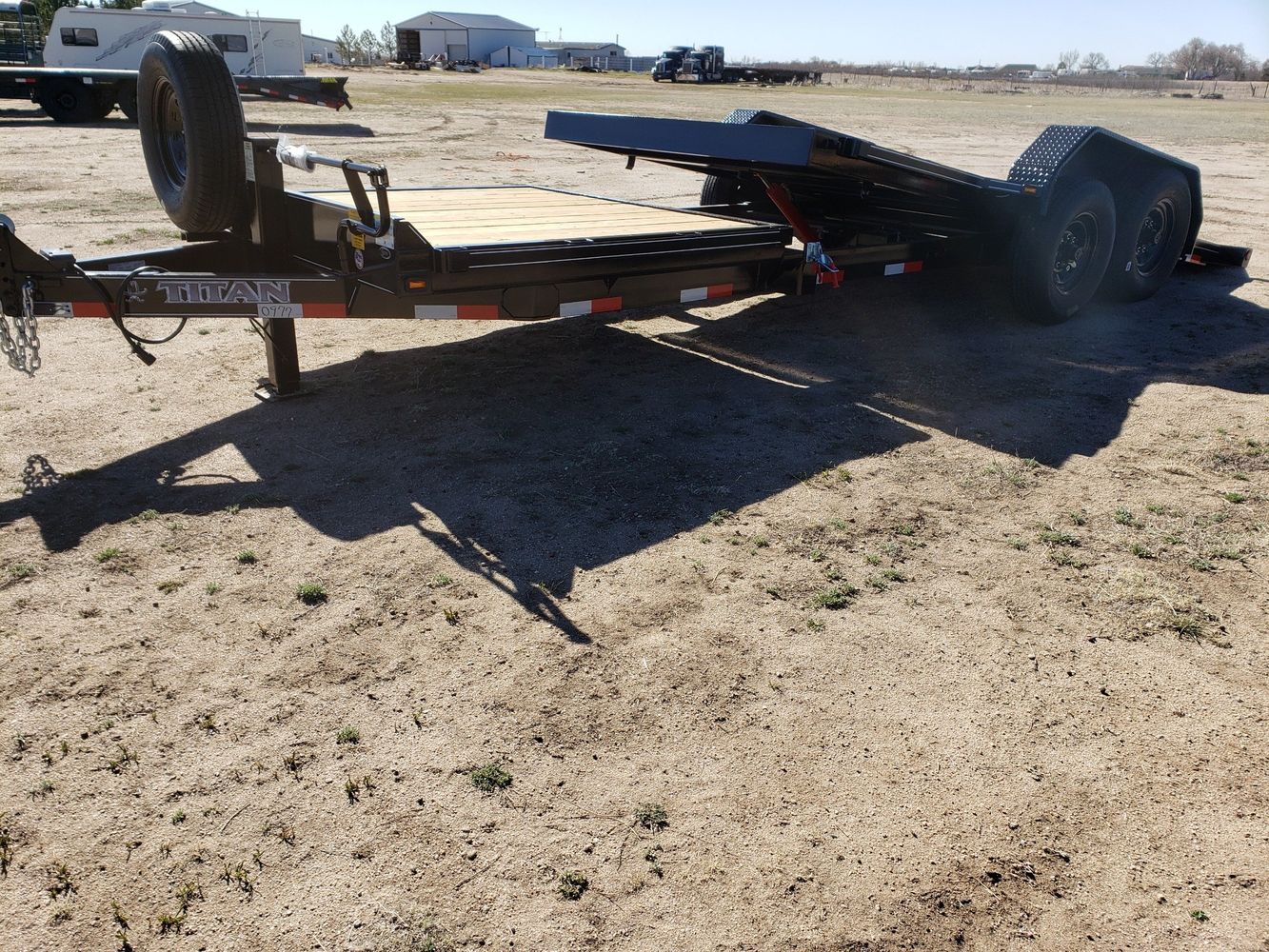

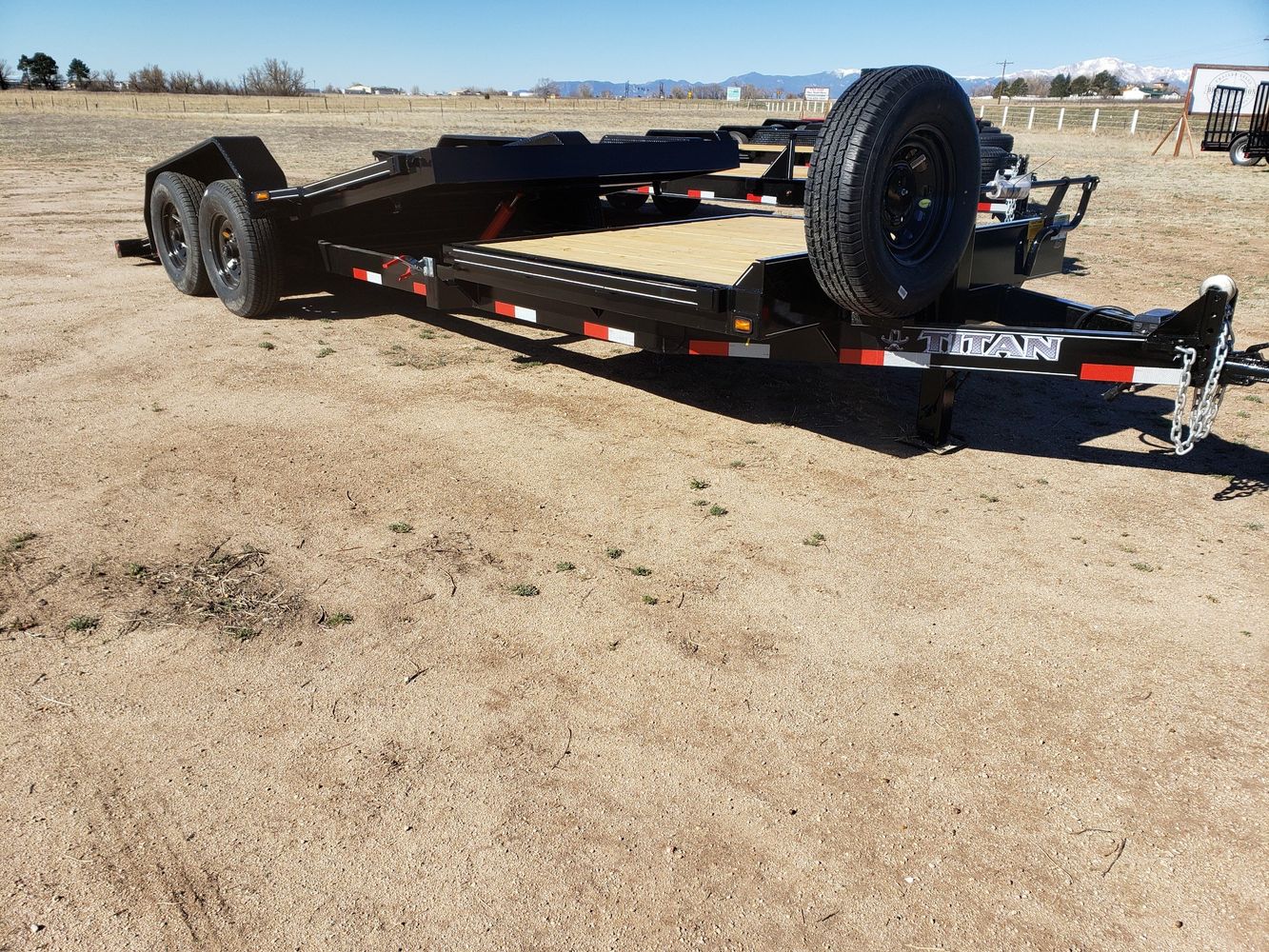

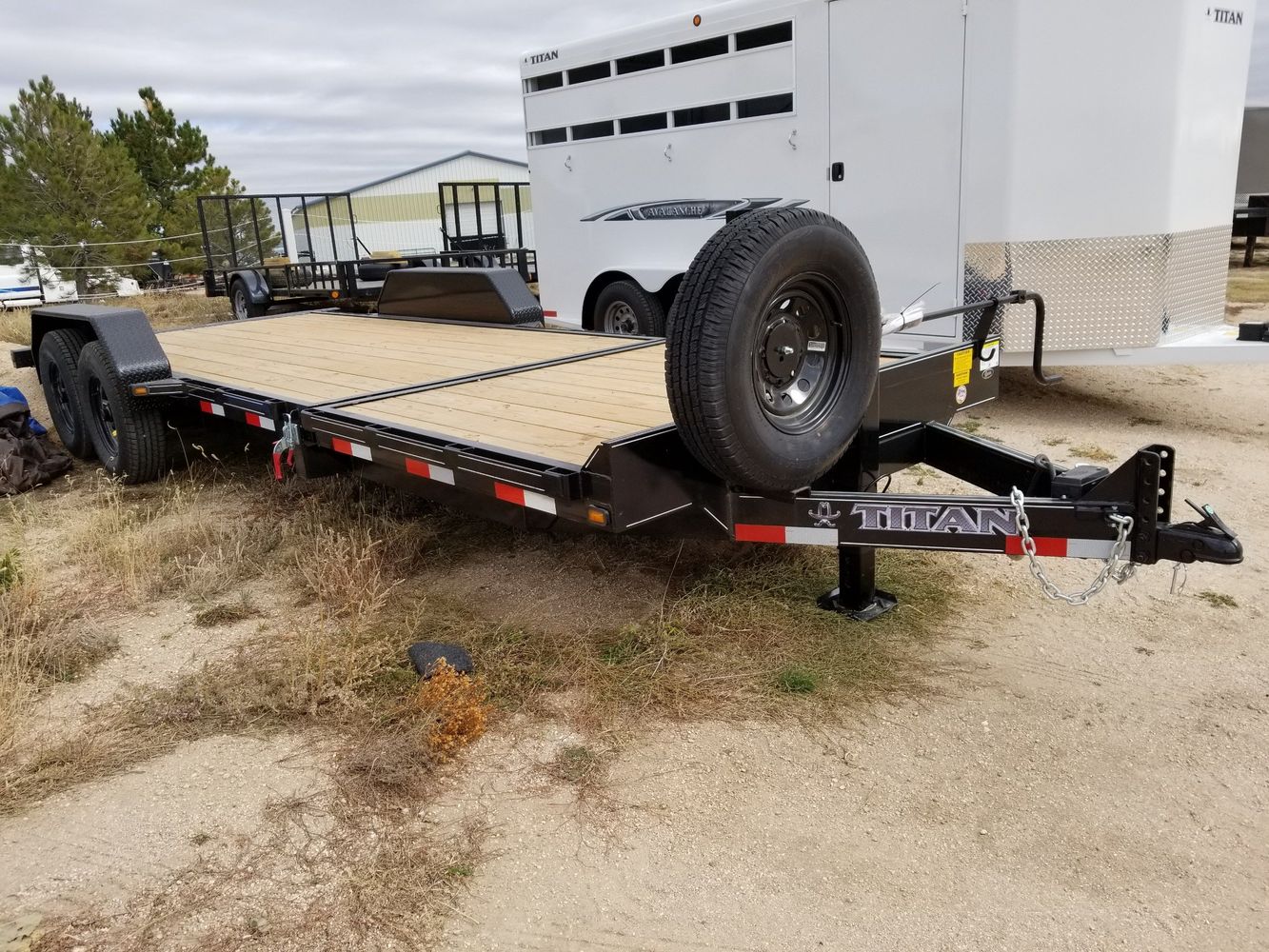

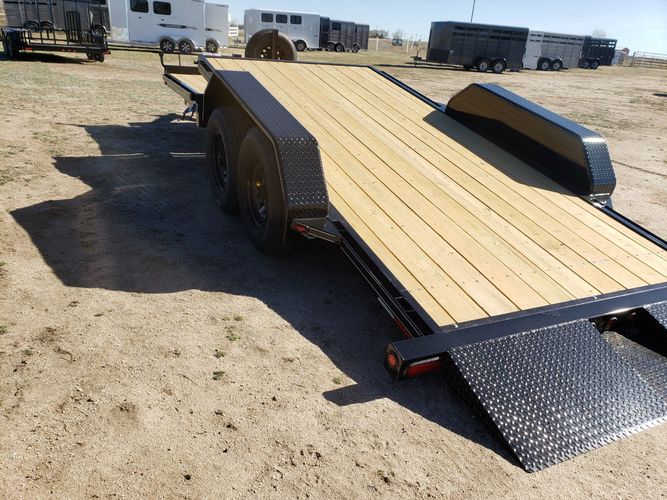

2024 Titan Tilt 16 tilt deck 6 ft stationary deck 14k GVWR
Standard Features
Double 6” Channel Main Frame

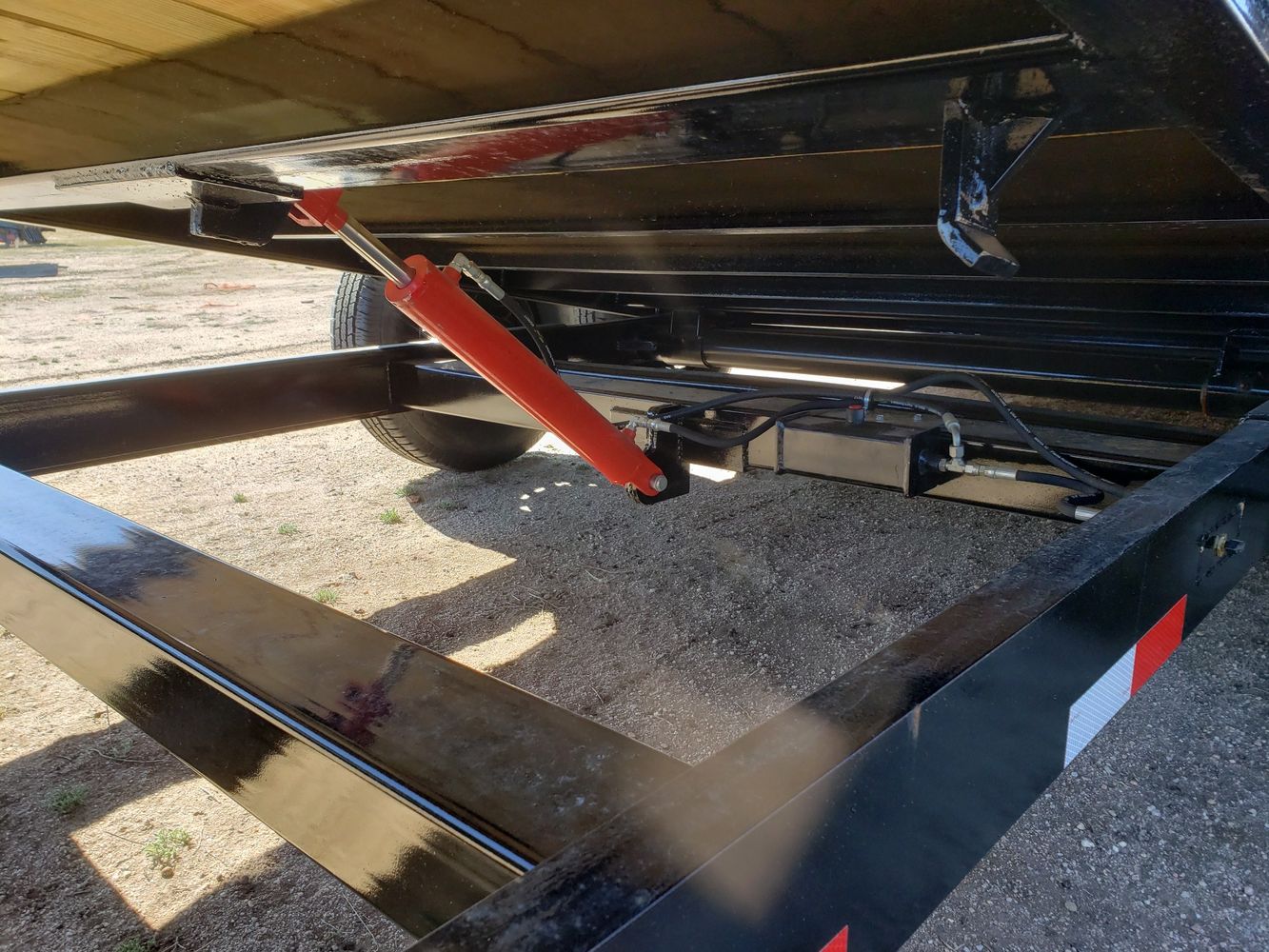

Stationary Valve
Torsion EZ Lube Axles
3” Channel Crossmembers
7000# Torsion Axles w/ 8 Bolt Hubs on 20'+ Trailers
Electric Brakes on all 4 Wheels
Stake Pockets
6K 8 Bolt Hubs on 16' Tilt only

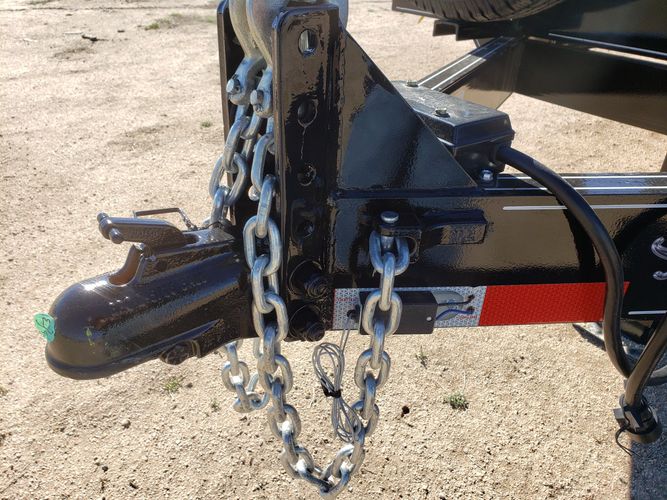

2-5/16” Adjustable Bumper Hitch Coupler
Chain Box Standard on Full Tilts Only
Channel Iron Front Rail
Spare Tire
Breakaway Battery Box with Charger and Tester

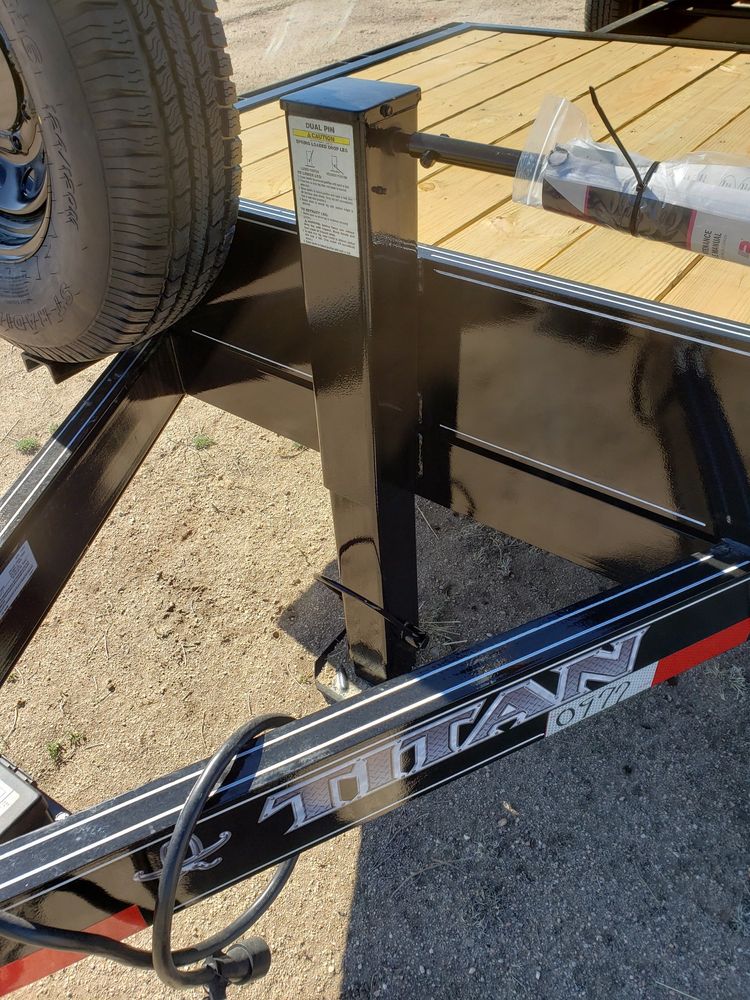

Spring Loaded Dual Pin Jack
11 ga. Diamond Plate Fenders
Sealed Beam Recessed L.E.D. Lights
Treated 2x8 Floor

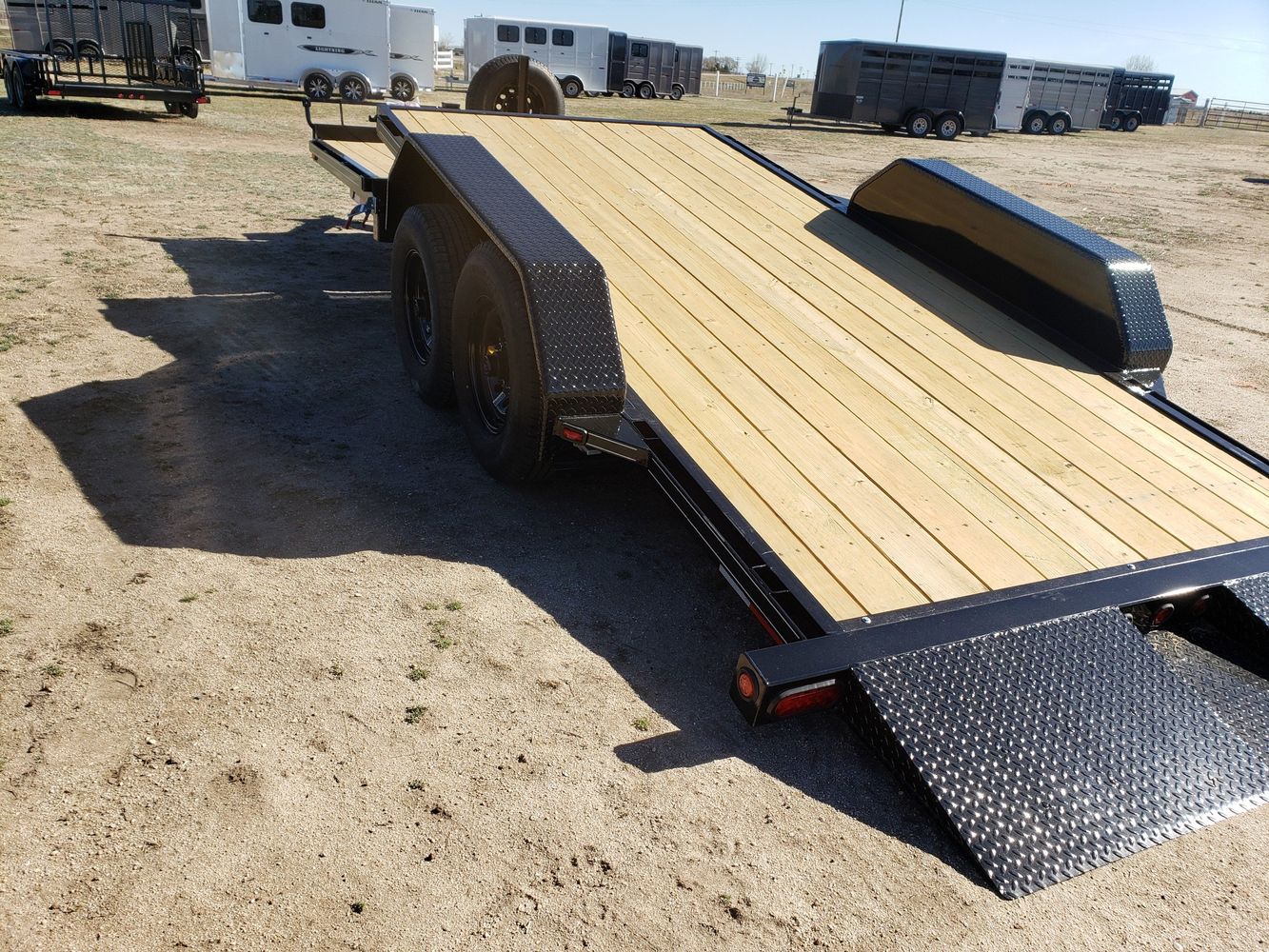

Length Includes 2’ of Dovetail Ramp
7-Prong Heavy Cord
Notes
12.5 Degree Load Angle on a 16' Tilt
10.5 Degree Load Angle on a 20' Tilt
Trailers 22' and Under Ordered with a Gooseneck will come with 8" Channel
Trailers 24' and Over Ordered with a Gooseneck will come with 10" Channel
ANY TRAILER OF A DIFFERENT SIZE WILL NEED AN APPROVAL AND A QUOTE FROM THE FACTORY
STANDARD FEATURES SUBJECT TO CHANGE AT MANUFACTURERS DISCRETION
WEIGHTS MAY VARY ACCORDING TO OPTIONS
