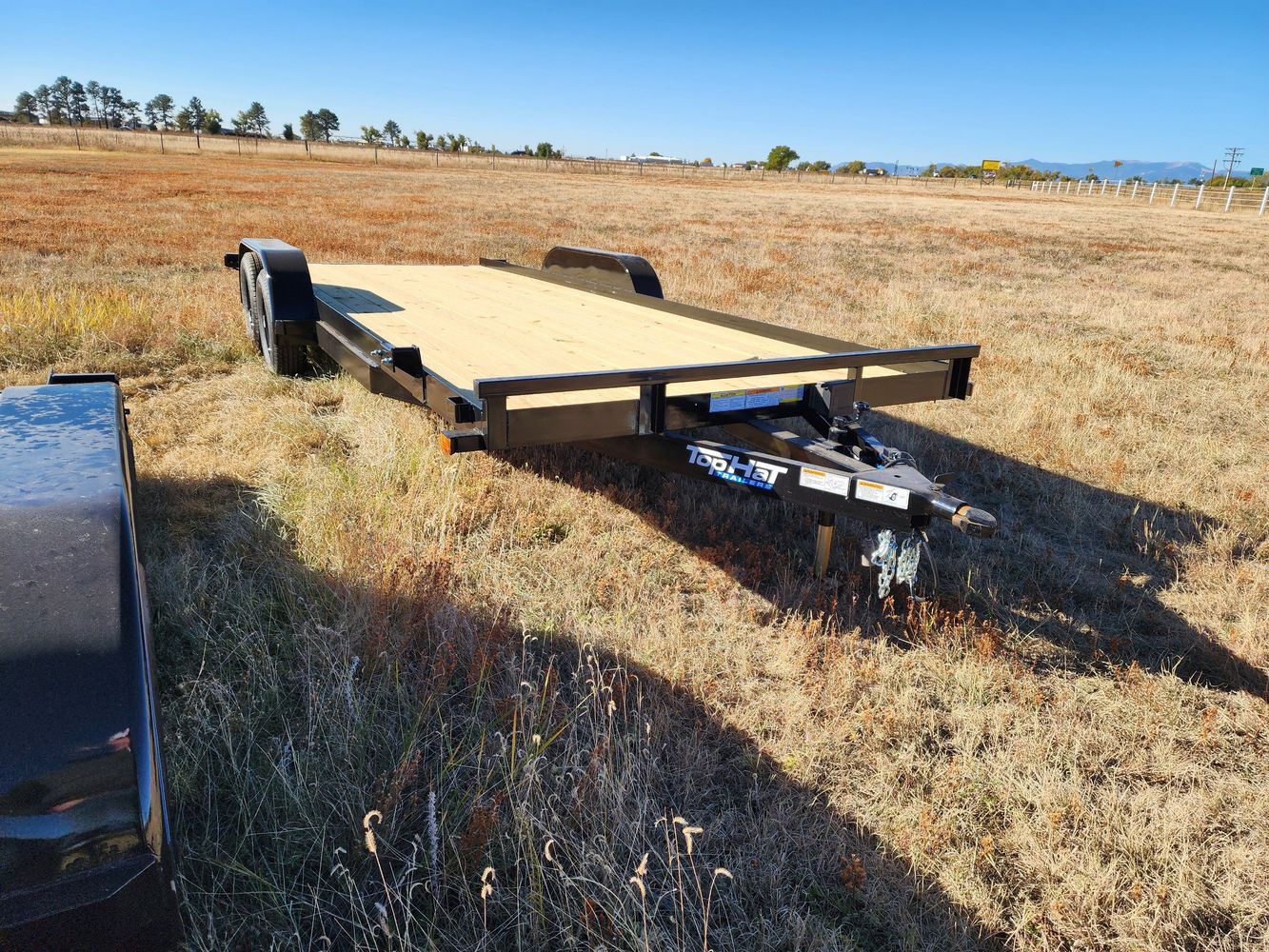

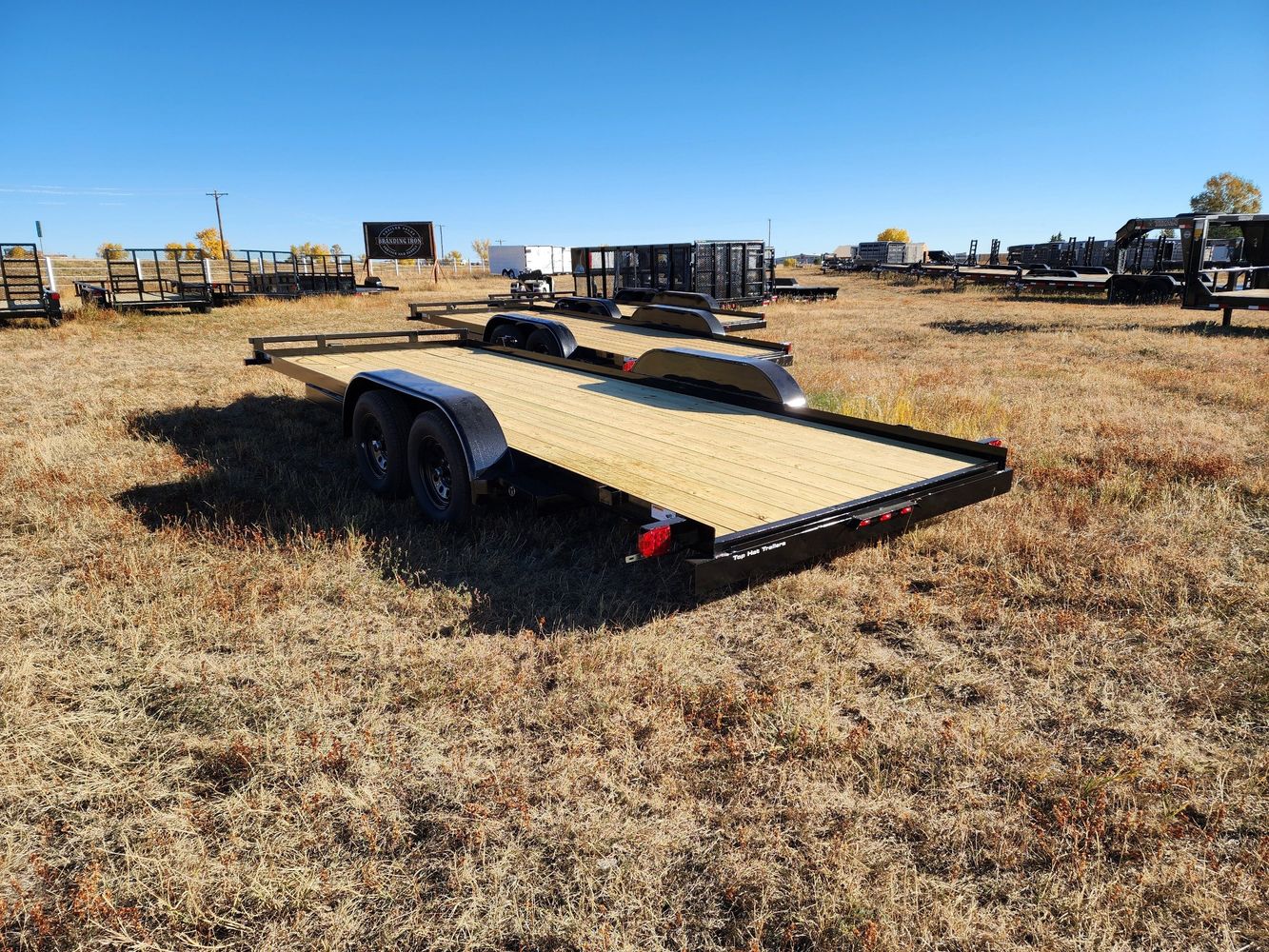

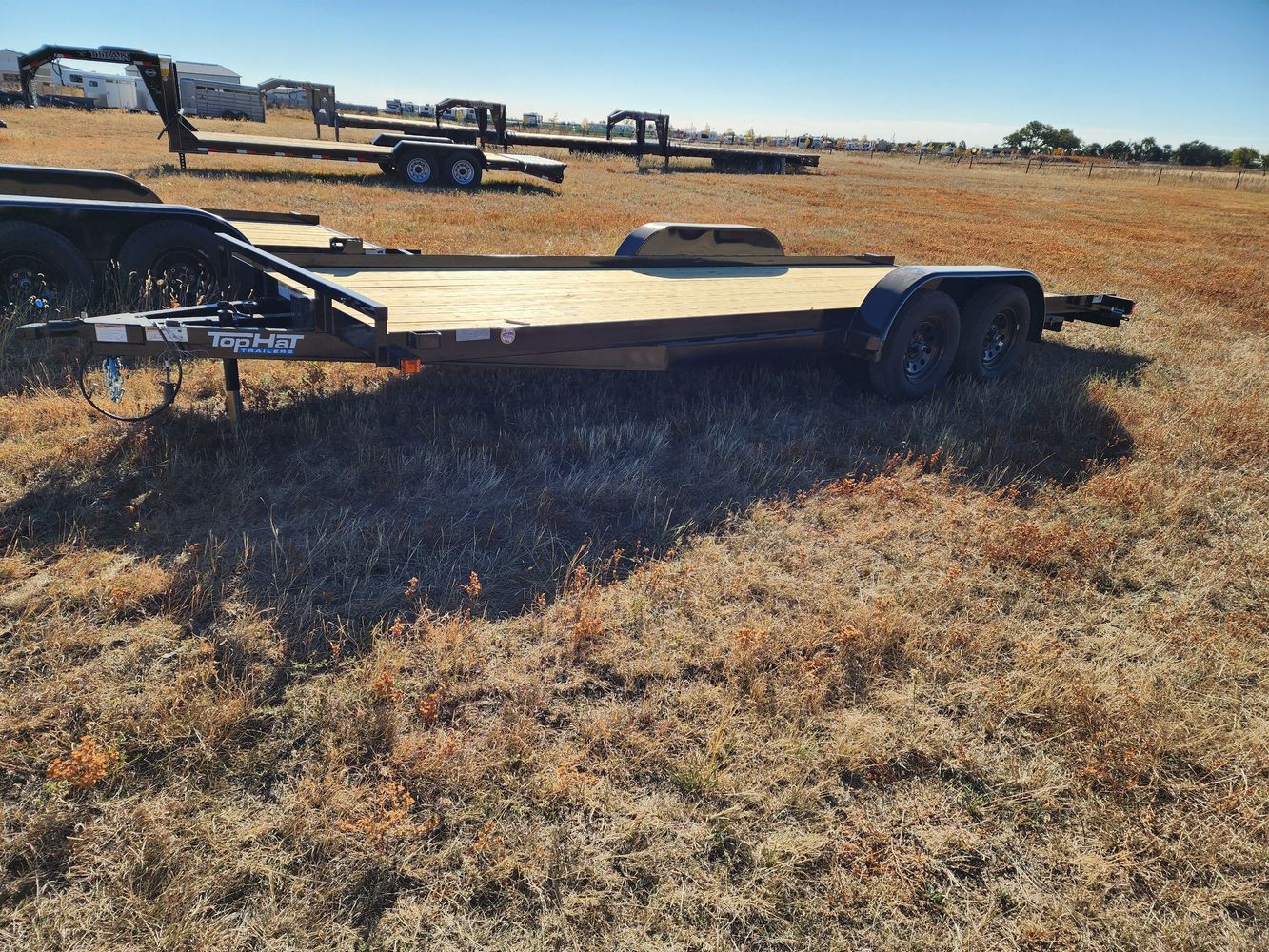

2024 Top Hat Carhauler 18ft x83 wide
slide in ramps
Standard Equipment
Coupler: 2" Forged A-Frame
Jack: 2000# Fold Up
Fenders: 9x72 Rolled Straight
Floor: 2" Treated Pine
Brake: Electric 2 Wheel
Break Away Unit w/Charger
Stake Pockets
Spare Rack
LED Lights
Colors: Refer to Chart
Frame Structure
Frame: 5x3x1/4
Crossmembers: 3x2x3/16
Tongue: 5" Channel Wrap
Floor to Fender Ht. 13.5"
Front Bump Rail: 2" Square Tube
Options
Delete Brake Axle
Electric Brake (2nd Axle)
Flush Mount LED Lights
7000# Jack
Teardrop Fenders
Rounded Diamond Plate TD Fender
HD Diamond Plate Straight
Removable Fenders (Per Side)
Medium A-Frame Toolbox on Tongue  (Fold-Up Jack NA w/Toolbox. Jack Put Thru Coupler at NC.)
Spare ST205/15 LRC on 5-Hole Radial
2' Dovetail (Wood)
2' Dovetail (Treadplate. Must Purchase Flush Floor.)
Flush Floor (Floor to Fender Ht. 10")
4' Slide-N-Ramps
5' Slide-N-Ramps (NA on 12' & 14')
6' Slide-N-Ramps (NA on 12' & 14')
Other Options Available
