| GVWR: | 12000 |
| CWR: | 4000 |
| Length: | 20 |
| Width: | 6.8 |
| Height: | 7.2 |

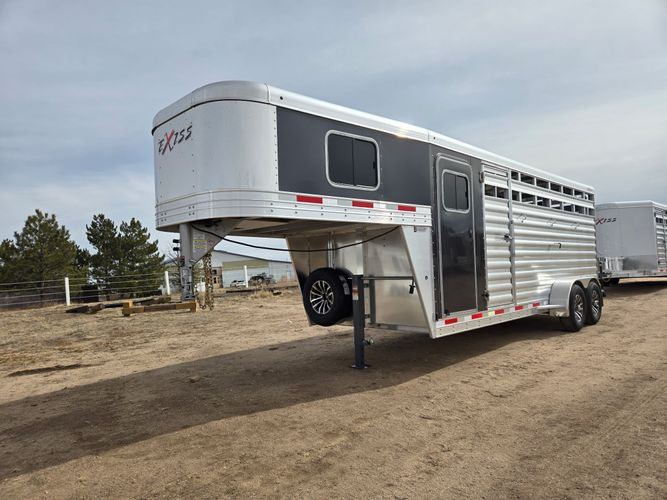

Coupler: Gooseneck
Dimensions: 6’8” Wide x 6’8” or 7’2” Tall x 20’ Long
GVWR: 12,000 lbs
Empty Weight: Approx. 4,000 lbs
Axles: (2) 6,000 lb axles

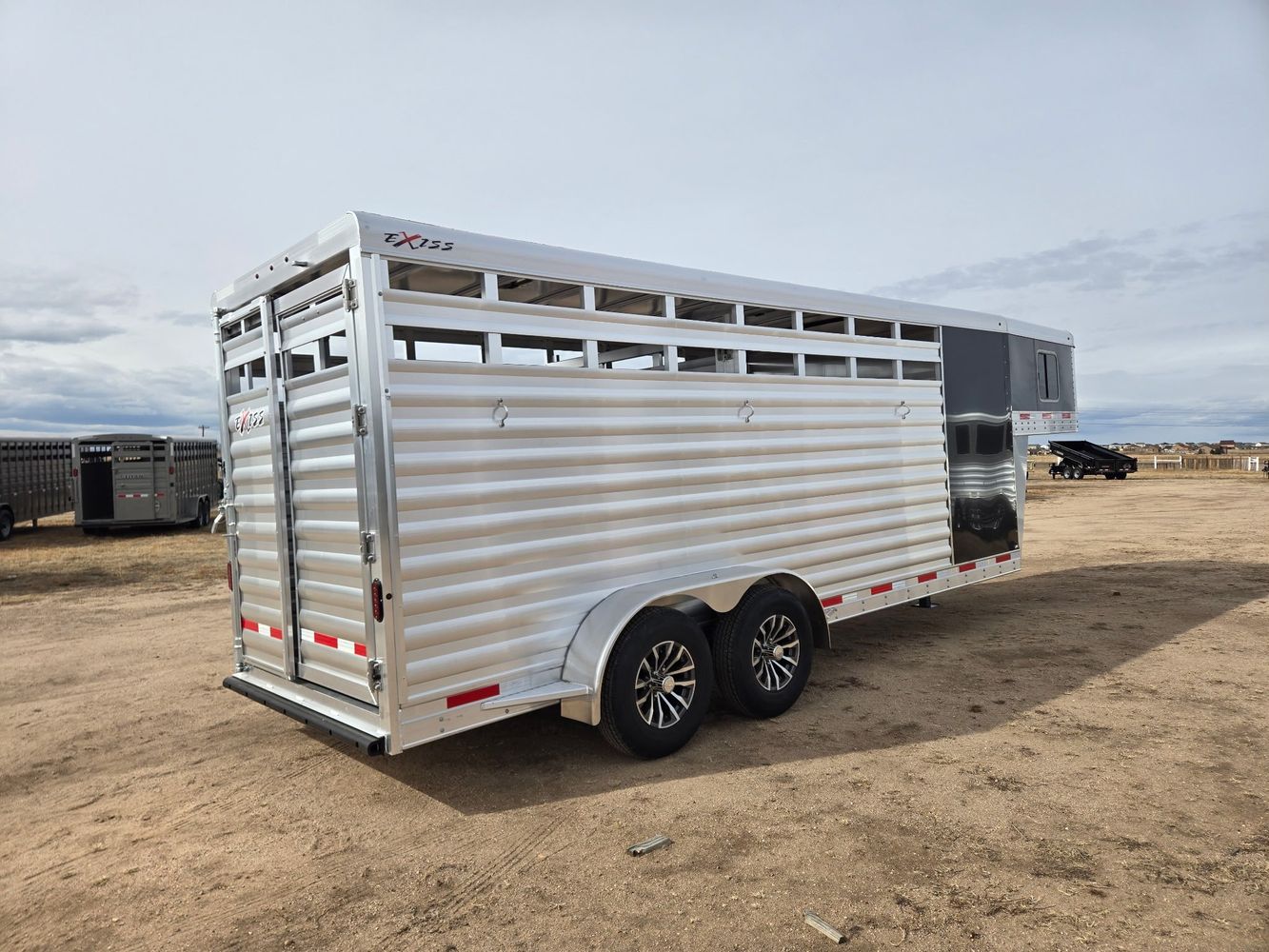

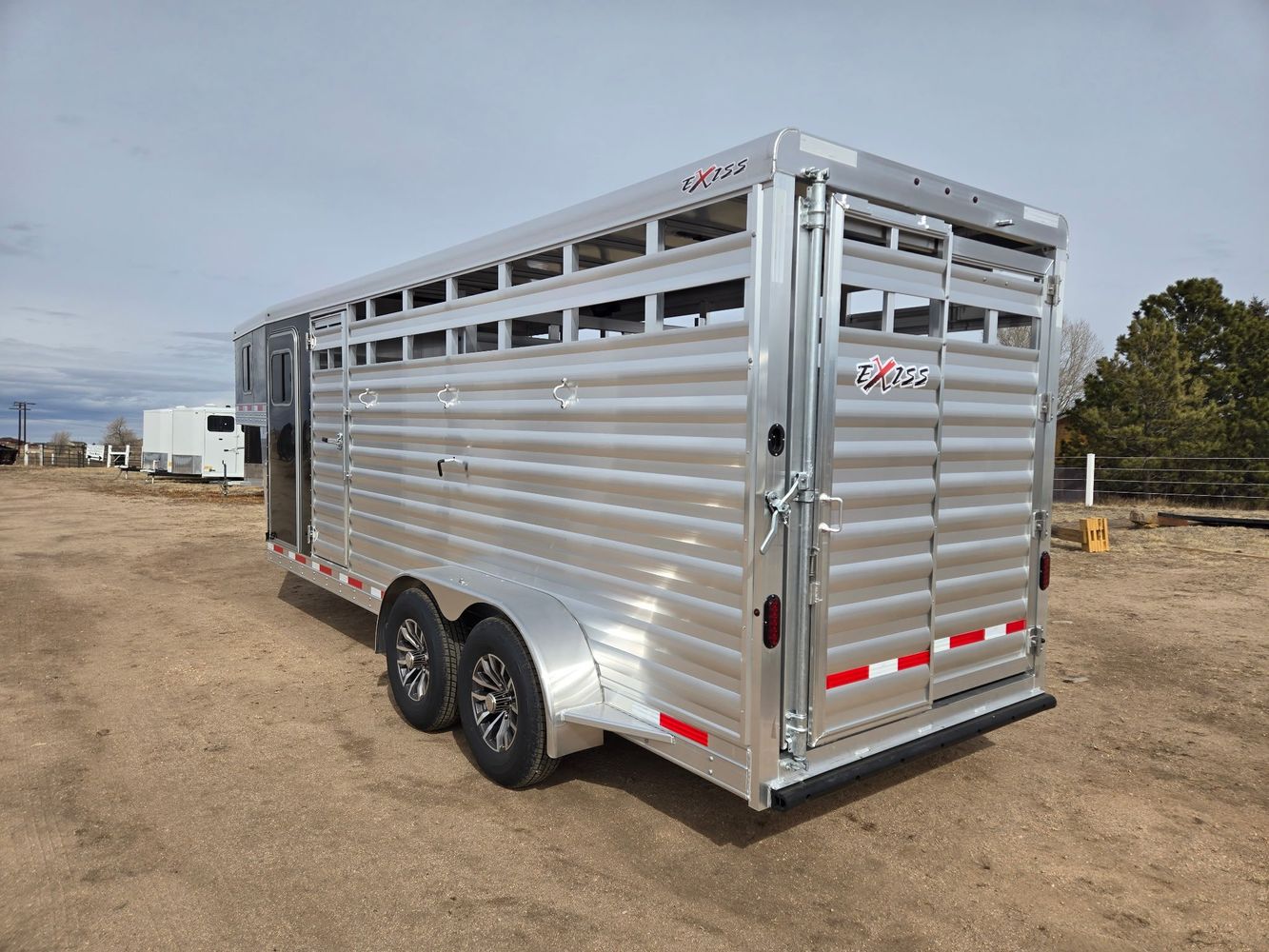

Built with a full aluminum frame and exterior for:
Lighter overall weight
Easier towing
Low maintenance
Long-term durability and strong resale value

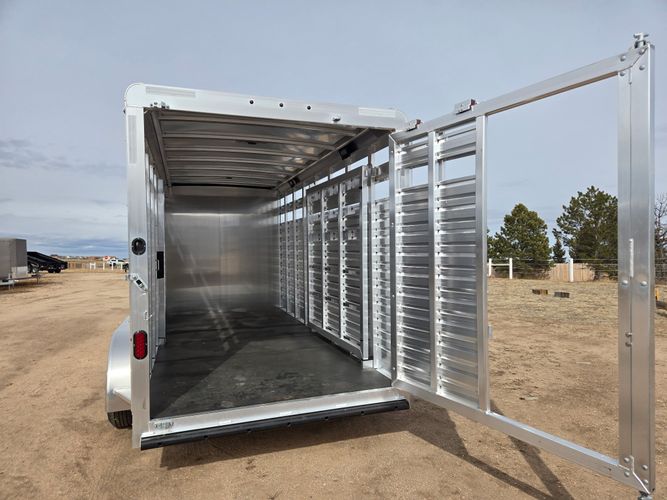

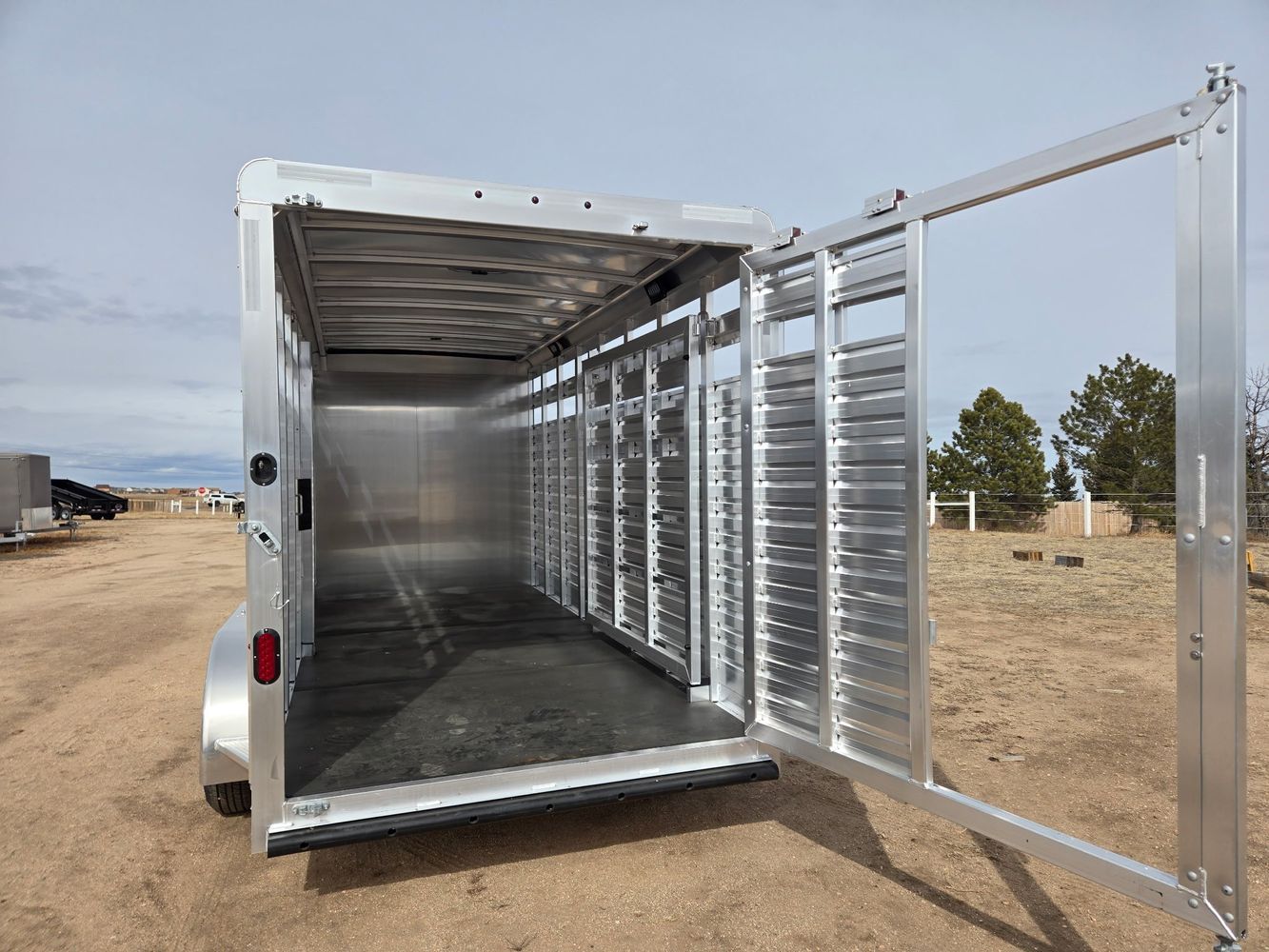

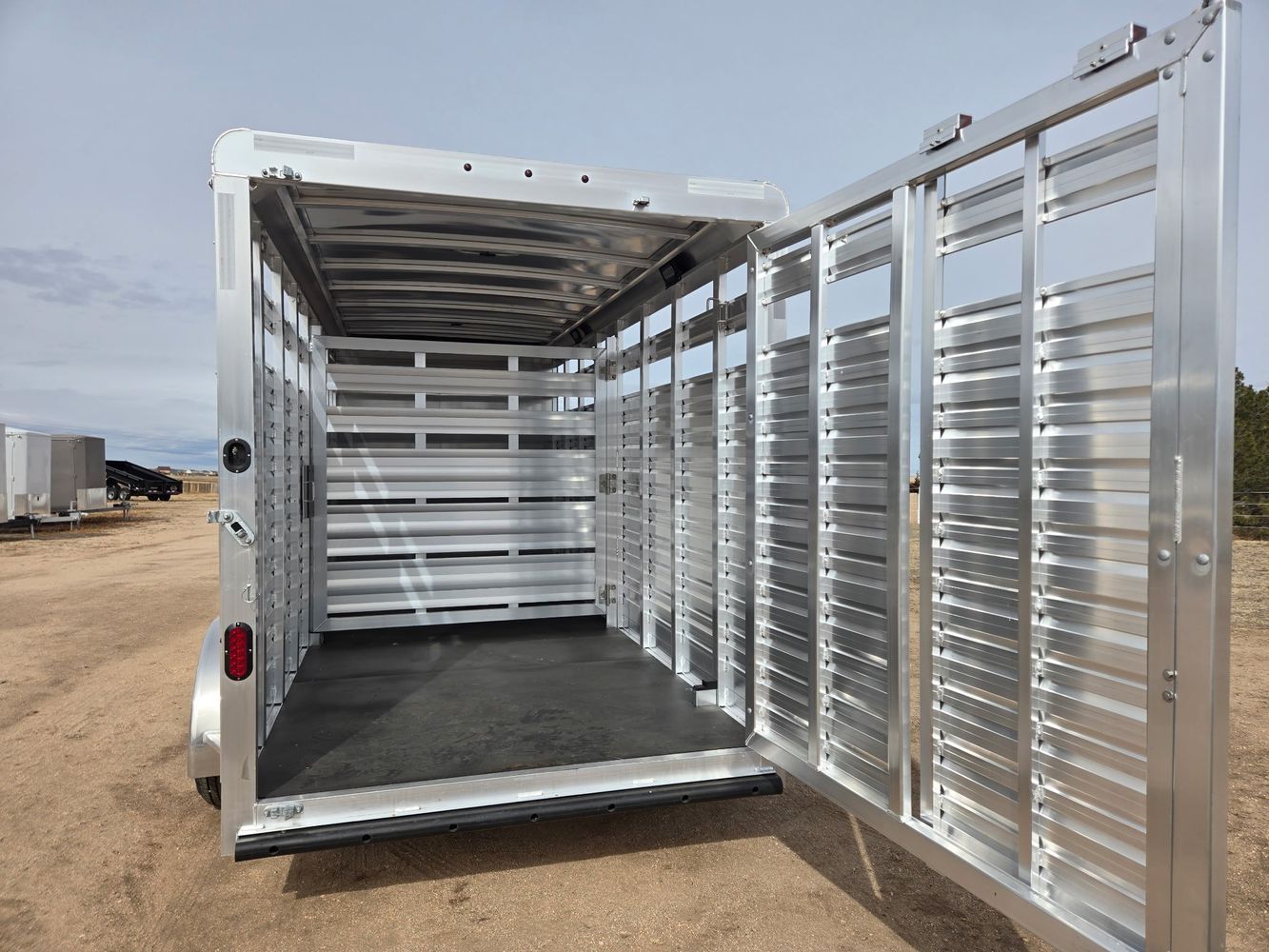

Interlocking plank flooring
2” x 4” I-beam cross members
Planks run front-to-back, beams run side-to-side for maximum strength
Full-length, interlocking extruded aluminum planks
Built-in traction cleats
Runs from nose to tail for consistent strength and livestock stability
External handle allows you to open the center gate slam latch from outside the trailer
Safer and more convenient when sorting or unloading
Single-sheet .040 mill-finish aluminum
1” x 2.5” roof bows
Superior sealing to reduce risk of leaks
Surface-mount LED clearance lights
Energy-efficient and long-lasting
Improved road visibility
Integrated Plexiglas tracks top and bottom
Easy installation (optional add-on)
Matching spare tire and rim standard
Increased interior storage capacity
Improved turning radius
Aerodynamic tapered nose for better fuel efficiency
