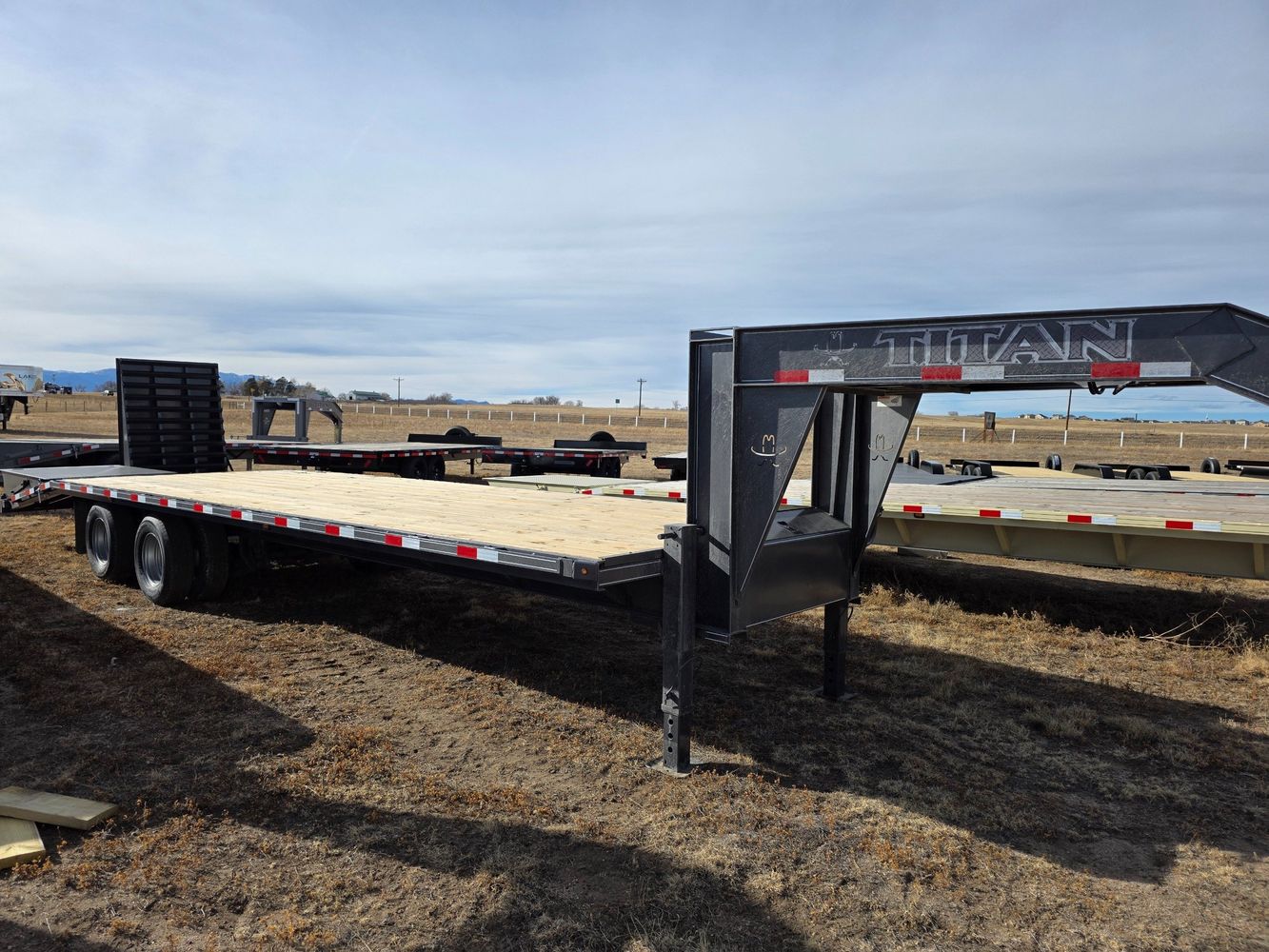

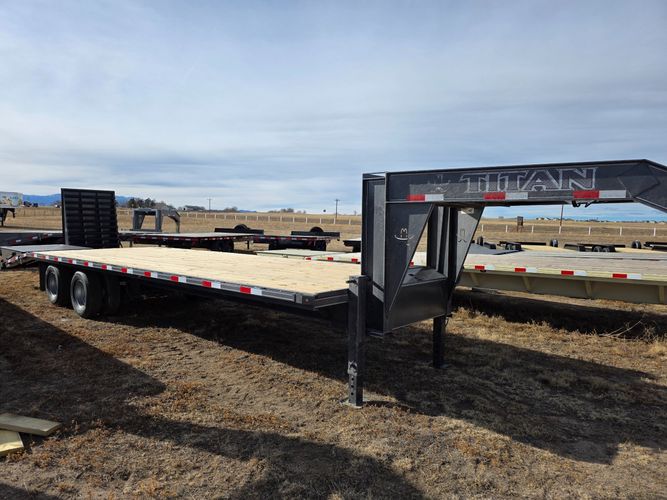

this 2026 Titan Ruffneck setup is a serious hauler, and the 6' WideGlide + 12K axle upgrade (24,000 GVWR) makes it stand out from most “standard” flatbeds.

? Key Highlights of This Trailer

• Upgraded to (2) 12K Dexter axles = 24K GVWR

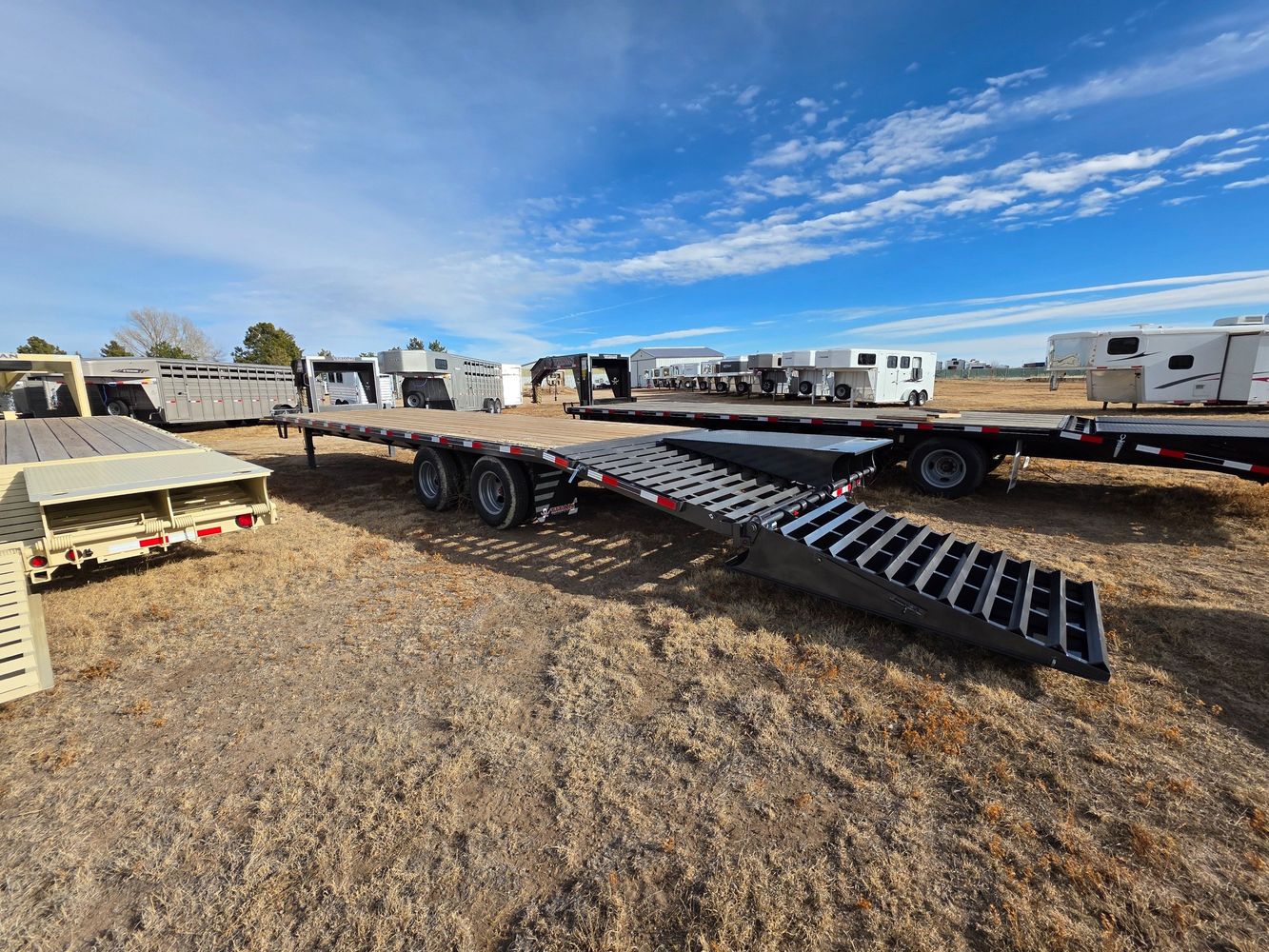

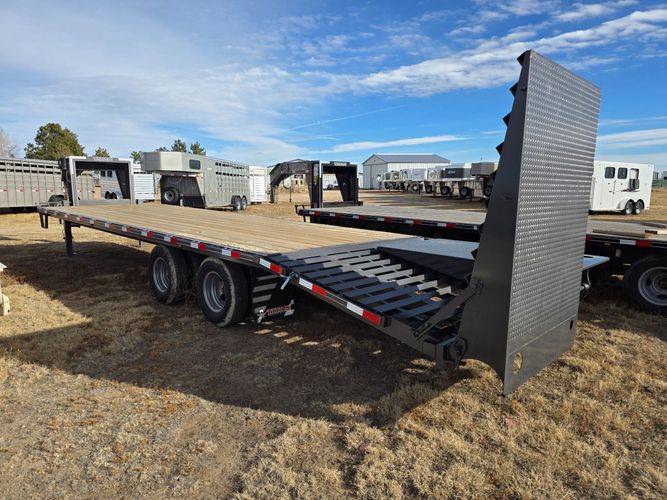

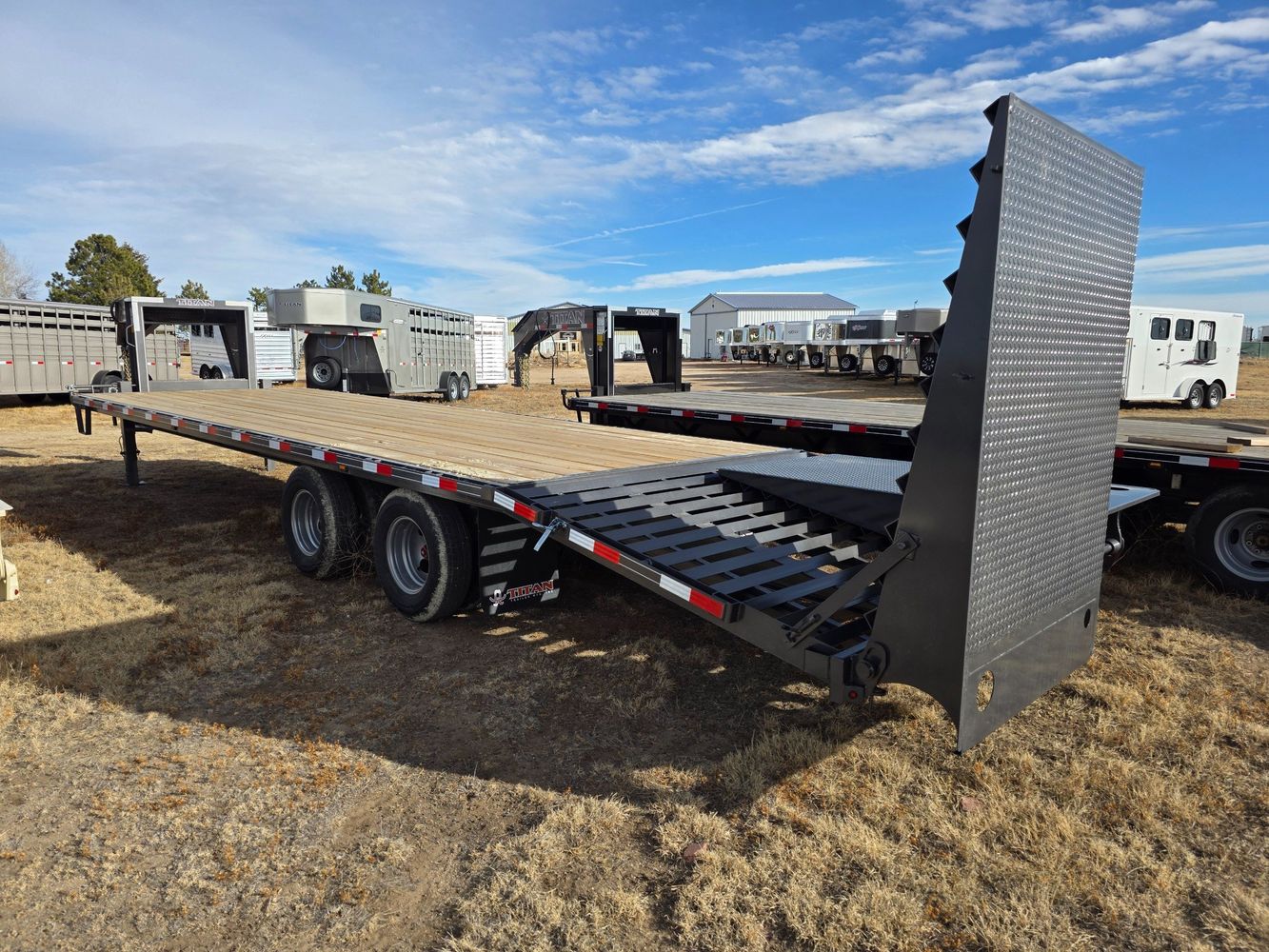

• 6' WideGlide ramps/tail (instead of a typical 5' dovetail)

• Those longer ramps make it easier to load:

  • skid steers

  • mini ex’s

  • tractors

  • hay equipment

  • material pallets

• Bonus: you can fold them flat and use the full trailer length for hauling hay or building supplies without losing deck space.

Standard Features Included (Strong Feature List)

Running Gear / Braking

• Dexter axles with 8-bolt hubs + 5/8” studs

• Electric brakes on all 4 wheels

• 235/R16 – 10 ply tires

• Provider matching spare tire included

Frame / Deck Construction

• 3” channel crossmembers on 16” centers

• Channel iron rub rail w/ stake pockets + 5/16” flat

• Coated inner frame under floor

• Treated 2”x8” floor boards (up to 24’ no splice)

• Stem made from the same I-beam as the frame

• Side braces from frame to floor

Lighting / Wiring / Safety

• Recessed sealed beam LED lighting

• 7-prong cold weather cord

• Breakaway battery box w/ charger + tester

• Safety chains & hooks

Gooseneck / Jacks / Storage

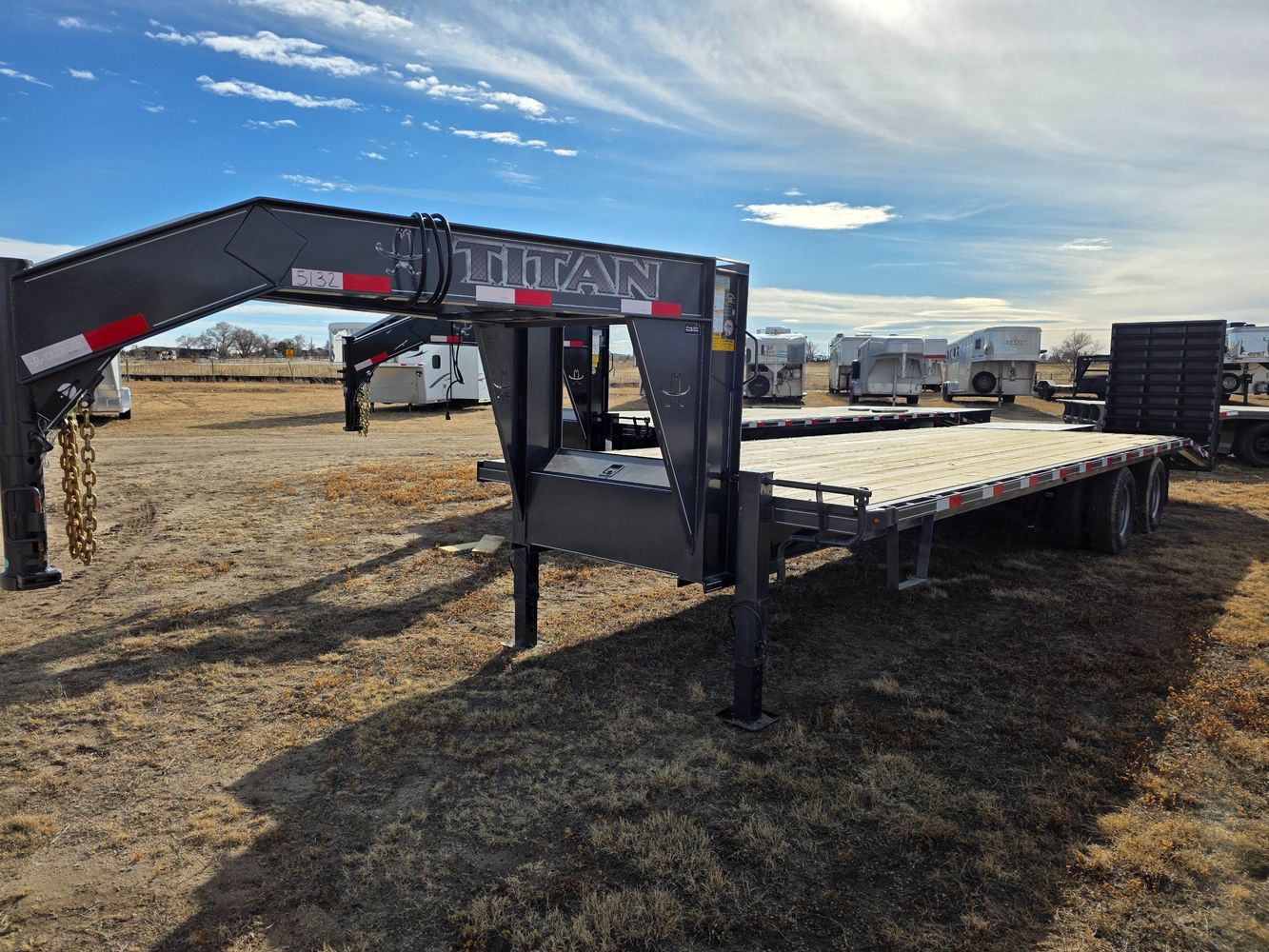

• 2-5/16” adjustable gooseneck coupler

• Dual Binkley spring-loaded dual pin jacks

• Loading jacks at the rear

• Chain box between uprights w/ lid

Notes on Reinforcement (Length-Based)

Titan built in the right kind of structure depending on trailer length:

• 29’–32’ total length: 1 torque tube + 1 heavy I-beam crossmember

• 33’–36’ total length: 2 torque tubes + 2 heavy I-beam crossmembers

• 37’+: 3 torque tubes + 3 heavy I-beam crossmembers

Plus the 8" torsion pipe runs from the front down to the axle area through heavy I-beam crossmembers every 5 feet.
