2026 Top Hat Trailers DX14-14X83-14E-F

$11,775

0 Miles
4R7BD1424TC261023
Stock #: 1023
  GVWR:   14000
  CWR:   4120

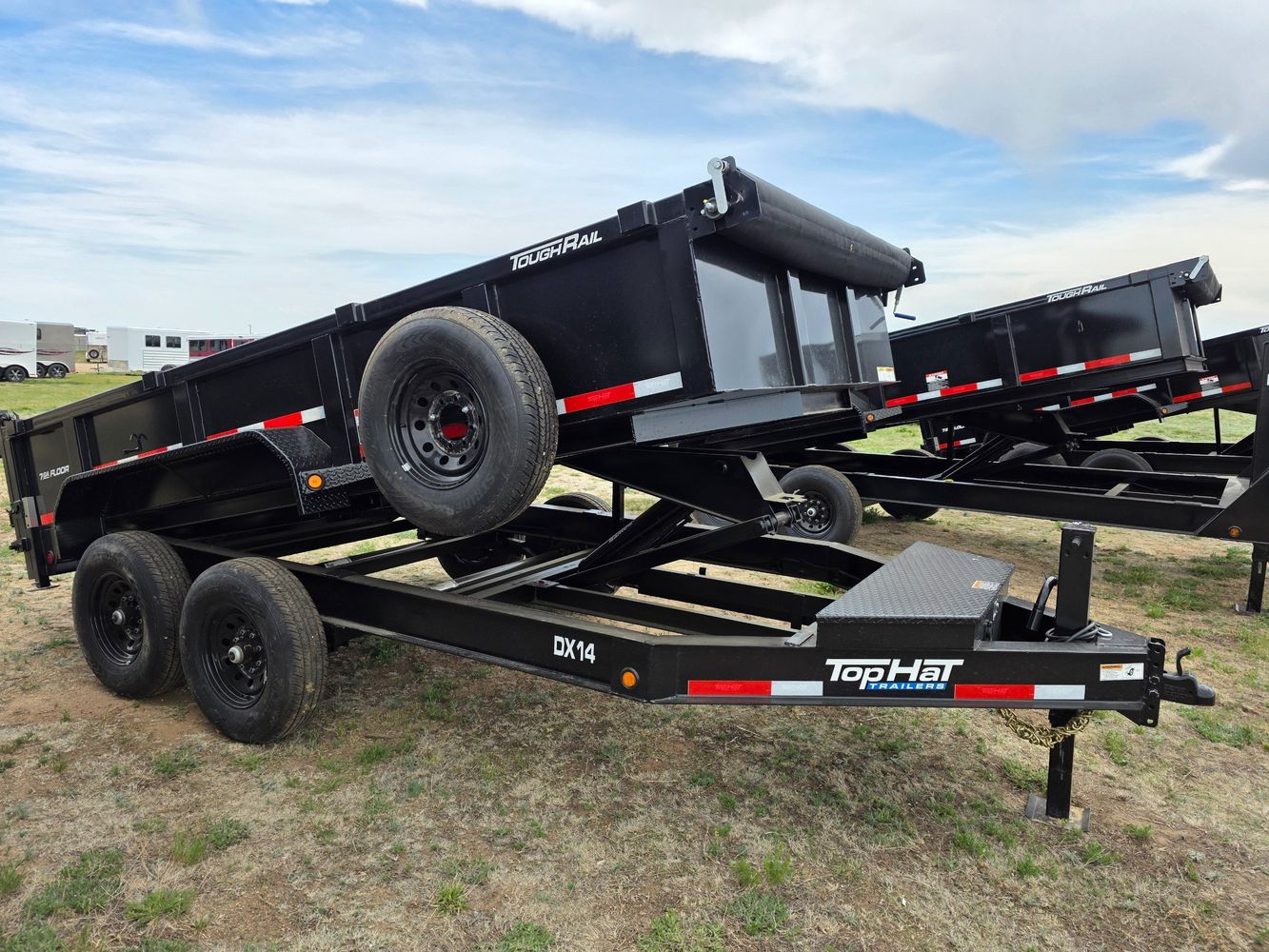

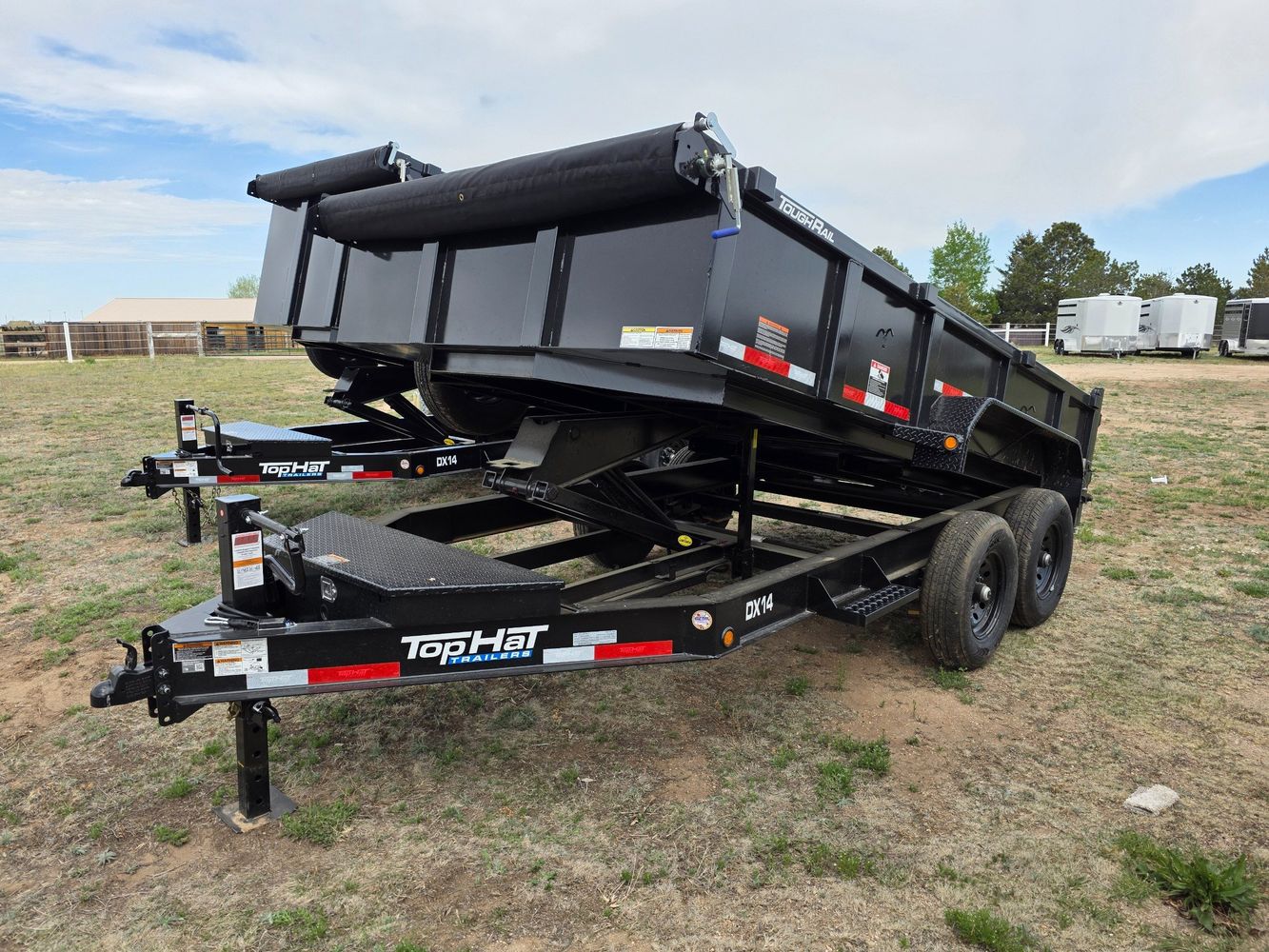

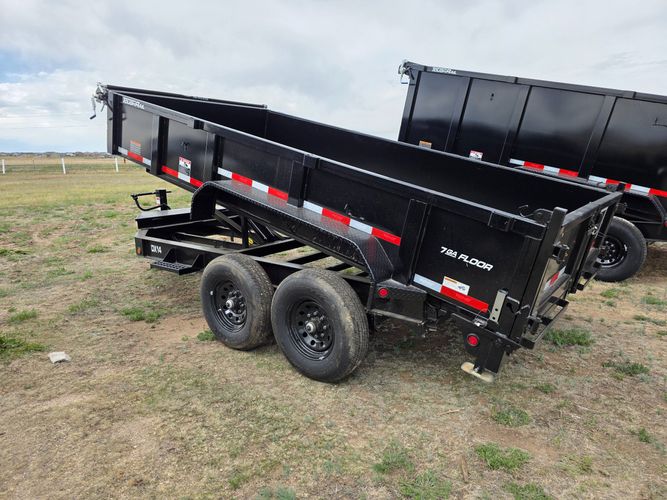

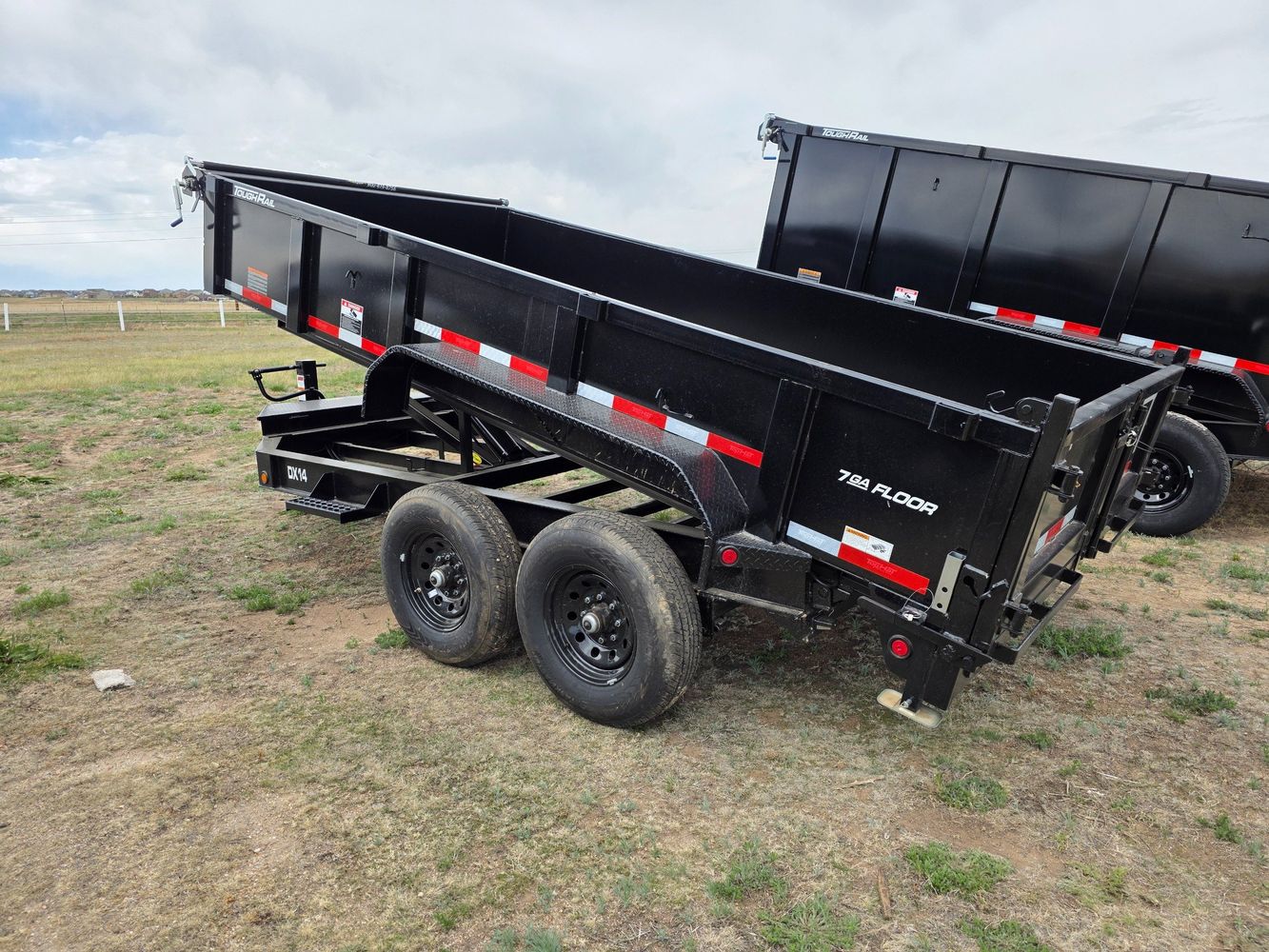

Take a look at this 2026 Top Hat 14' Lo Profile Dump Trailer built tough with a 14,000 lb GVWR and designed for serious hauling and daily work use. Whether you're moving gravel, demolition debris, firewood, equipment, or ranch materials, this trailer is engineered to handle demanding jobs while remaining easy to load and operate.

This model rides on (2) 7,000 lb Dexter axles equipped with electric brakes and EZ-Lube hubs for easier maintenance and dependable stopping power. It sits on heavy-duty ST235/80R16 Load Range E radial tires mounted to 8-hole wheels, giving you excellent load capacity and durability on the road or jobsite.

The dump body is built with strength in mind featuring:

  • 24" tall 10-gauge steel sides
  • Heavy-duty 7-gauge steel floor
  • Rigid 3x2x7GA rectangular tubing top rail
  • 6" channel dump body frame
  • 3" channel crossmembers on 16" centers

Underneath, the trailer is supported by a massive integrated 8" I-beam frame and tongue design, giving it the structural integrity needed for heavy payloads and rough terrain. The underside is also fully primed and painted for added corrosion protection and longevity.

Loading equipment is simple thanks to the included:

  • 6' slide-in channel ramps

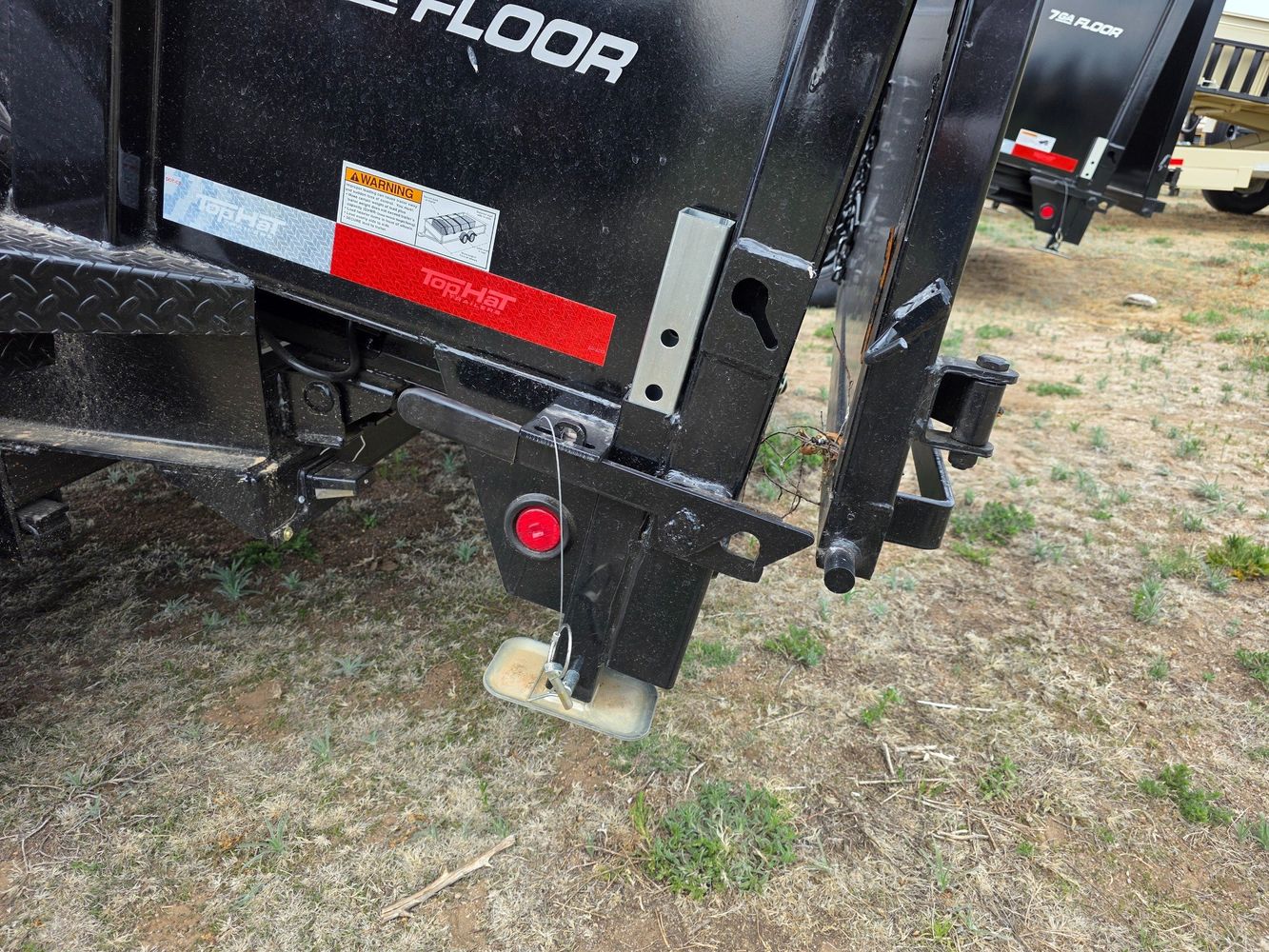

  • Rear stabilizer stands
  • 83" inside box width
  • Low-profile dump design for easier loading and lower center of gravity

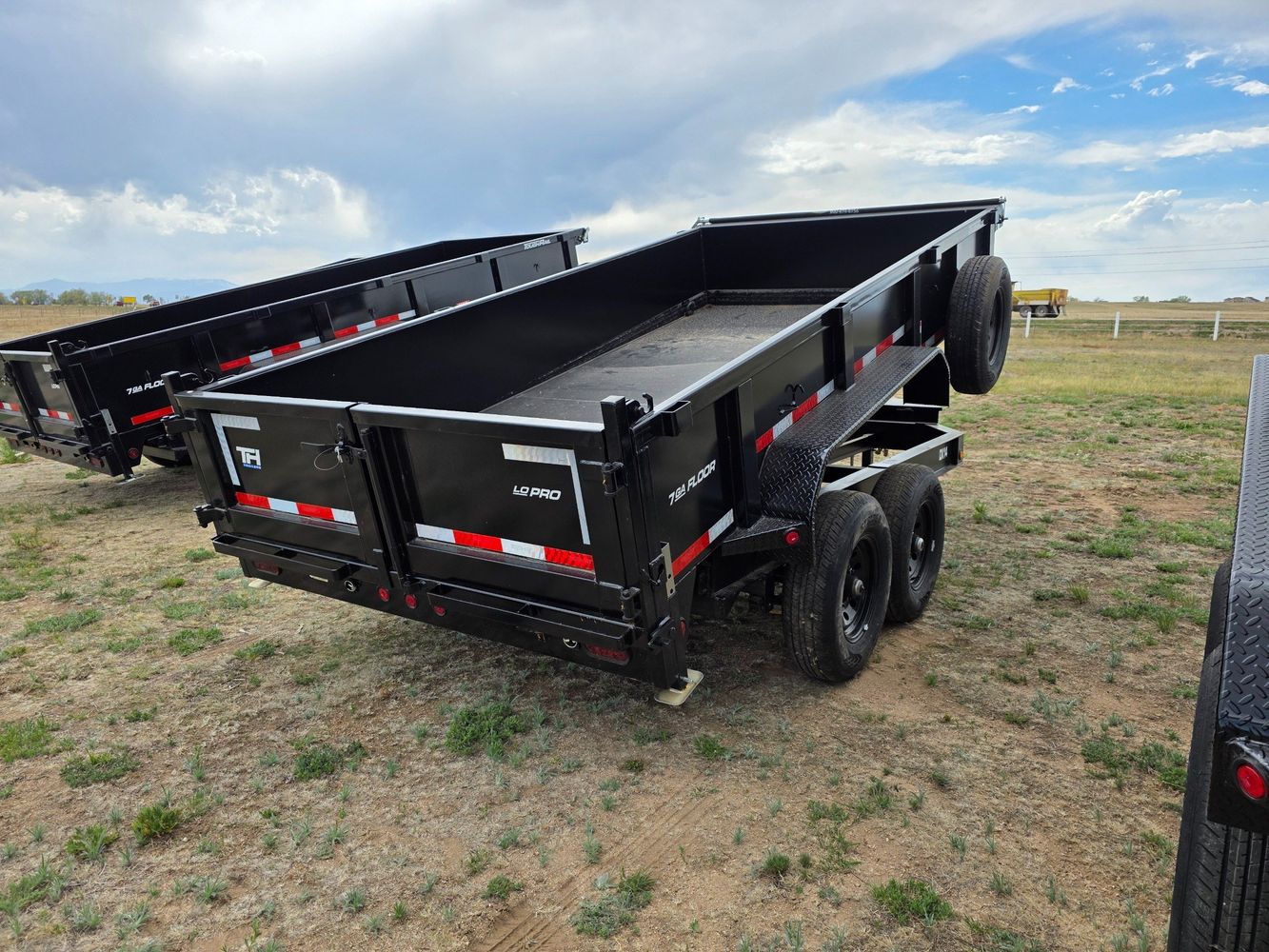

The rear of the trailer features dual-action swing-out doors combined with a 1-piece spreader gate, allowing you to either fully open the rear for equipment loading or meter material like gravel, mulch, or dirt during dumping operations.

Additional premium features include:

  • 2-5/16" DEMCO Easy Latch adjustable 5-position coupler
  • 10,000 lb drop-leg jack
  • Lockable battery and hydraulic pump box
  • Breakaway kit with onboard charger
  • Crank-style roll tarp system with tie-downs
  • (4) heavy-duty 5/8" D-rings inside the box
  • Driver-side step
  • Spare tire rack
  • Flush-mount sealed LED lighting
  • DOT reflective tape
  • Complete wiring harness

Finished in black, this trailer has the clean look and rugged construction Top Hat trailers are known for. It’s an excellent fit for contractors, landscapers, ranchers, construction crews, and property owners needing a durable dump trailer that’s ready to go to work immediately.
