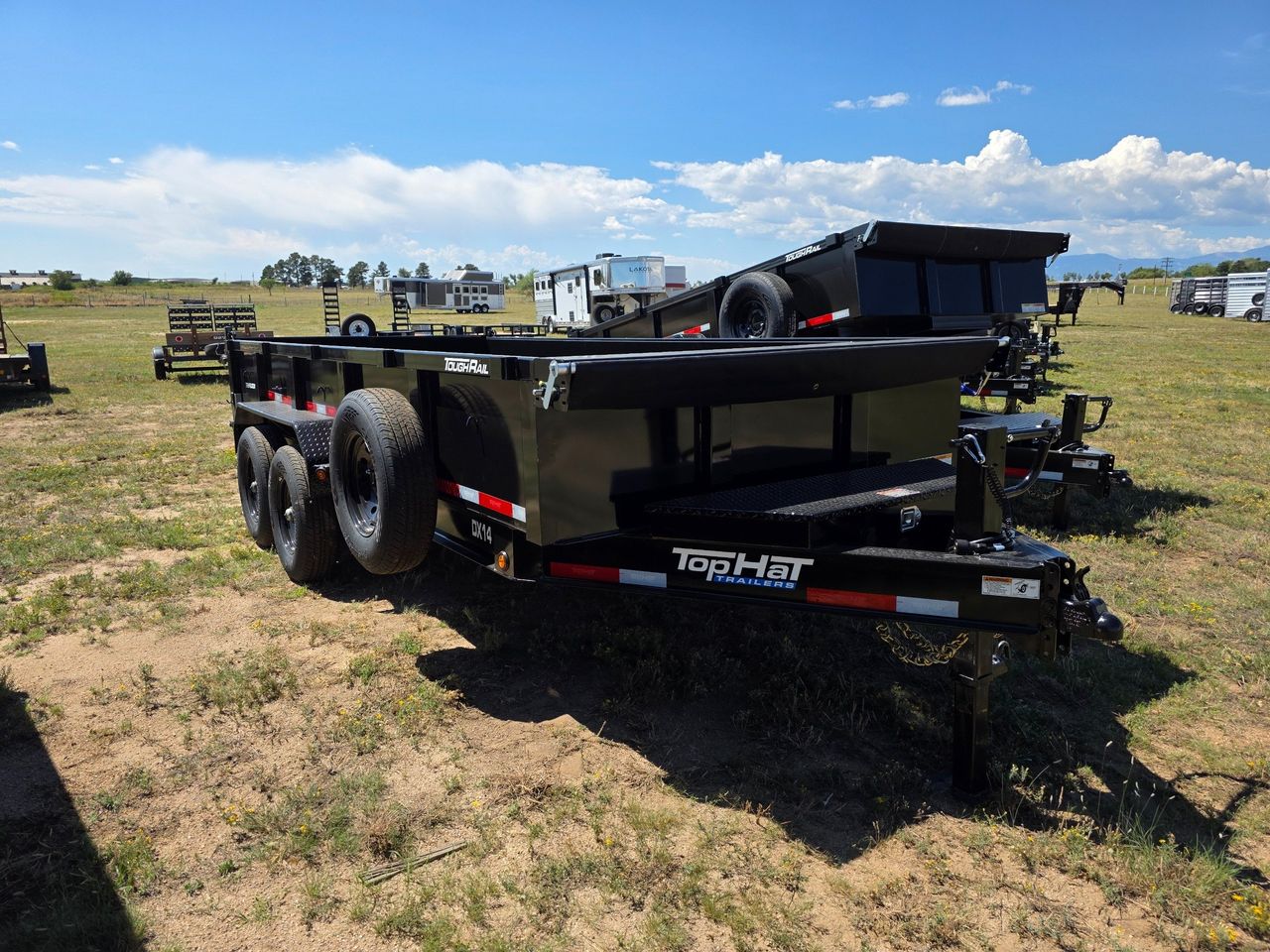

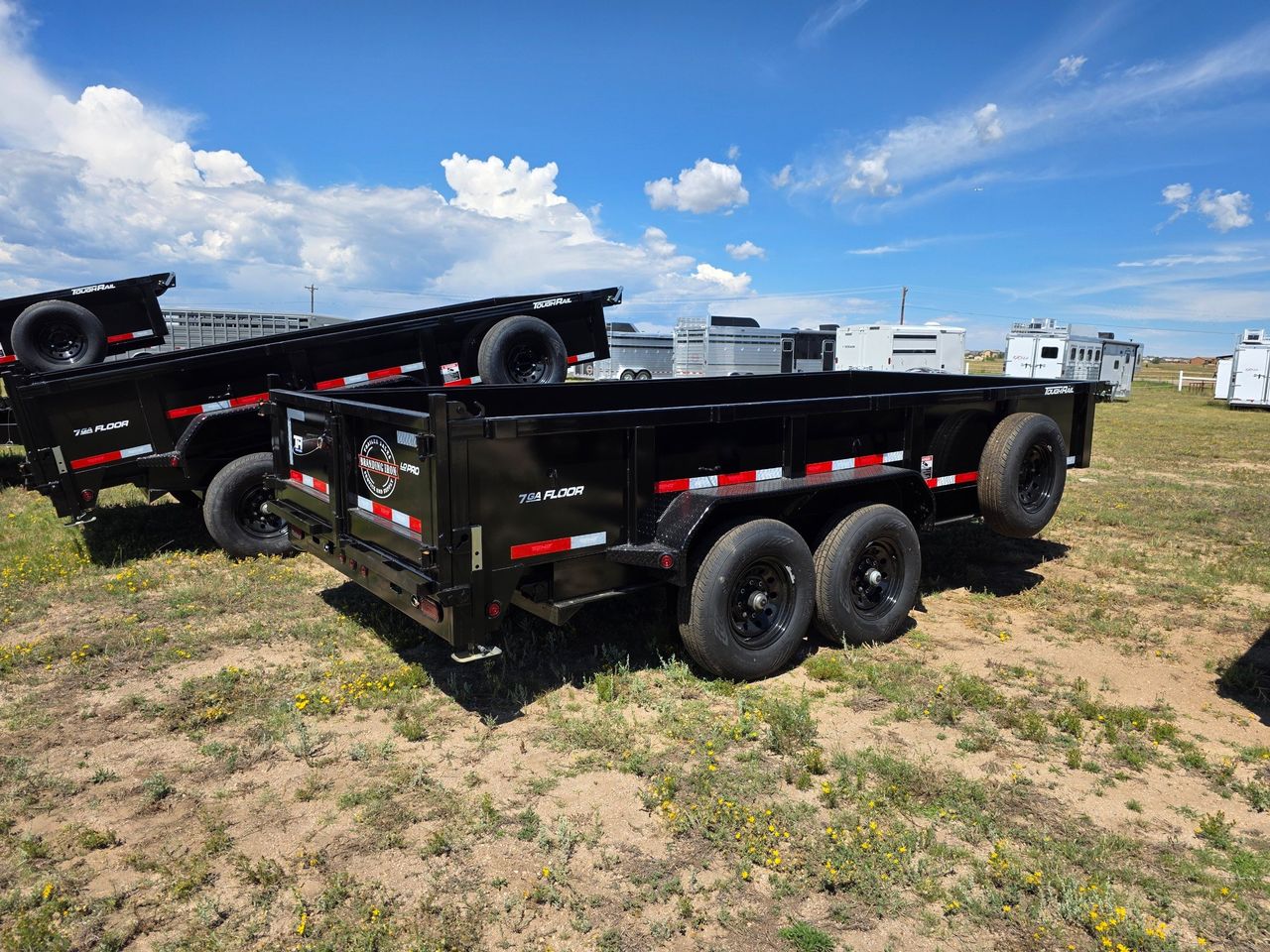

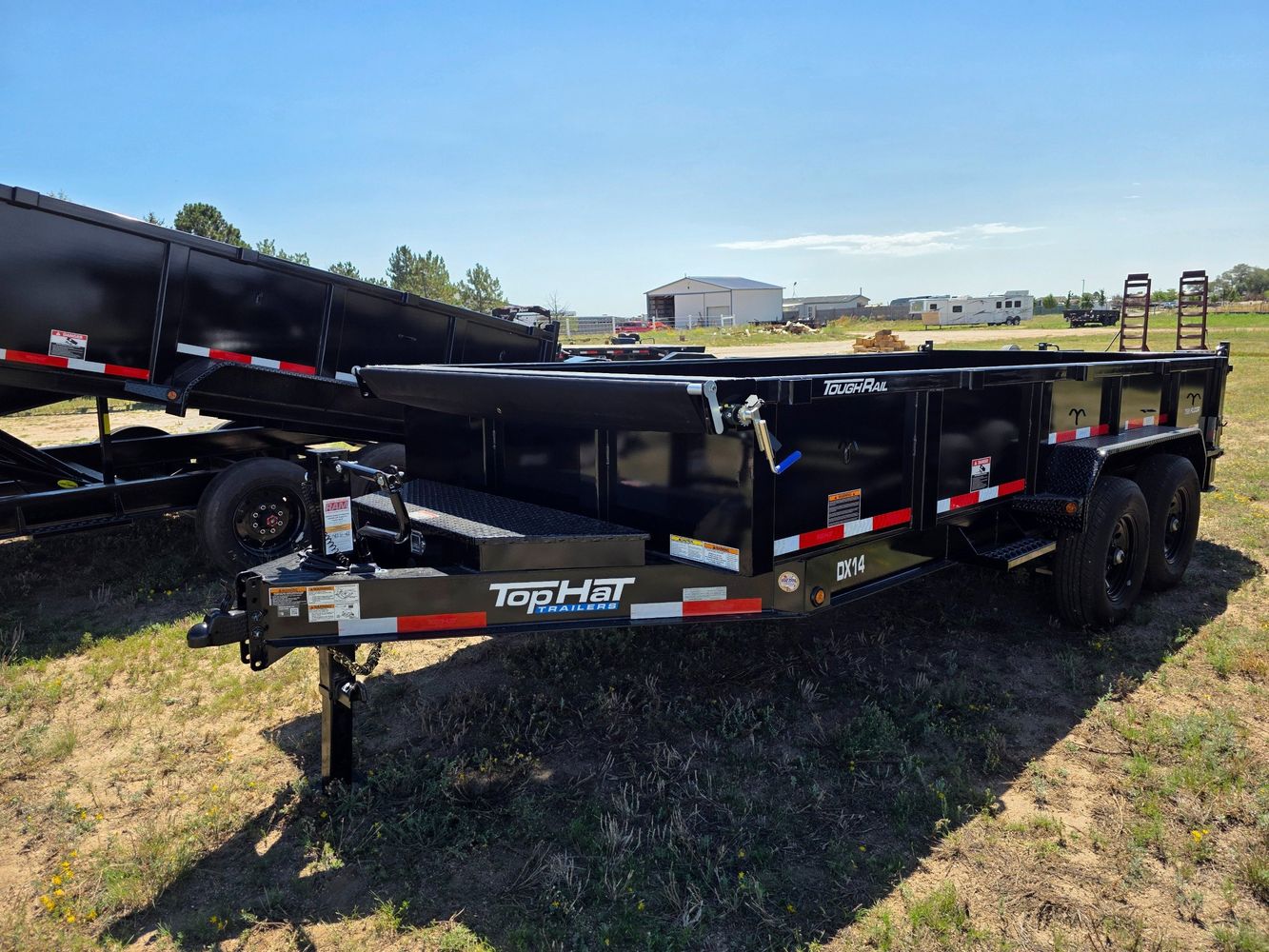

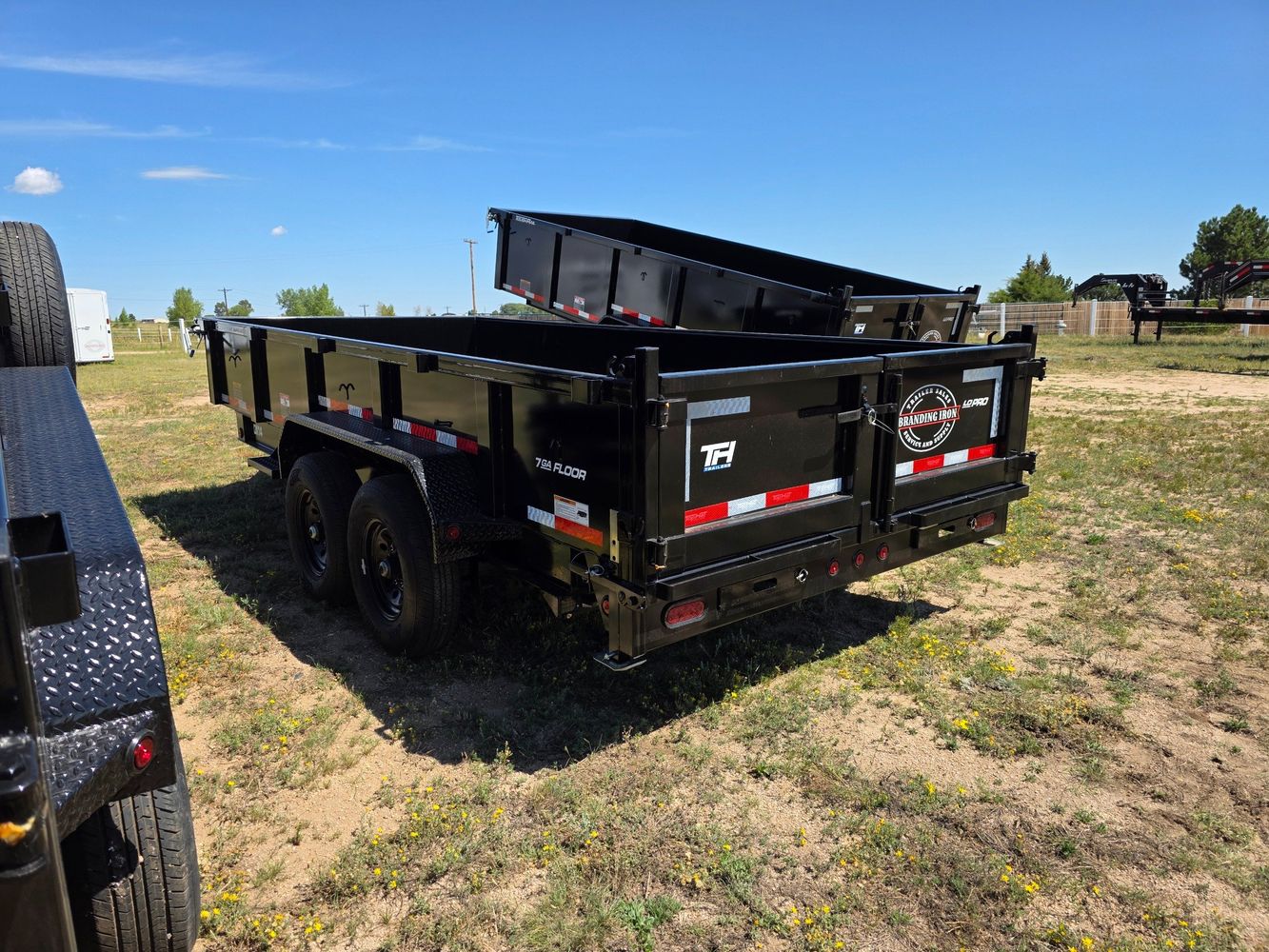

2026 Top Hat DX14 – 16' x 83" Low Profile Dump Trailer

Heavy-duty 16' dump trailer built for equipment, dirt, gravel, demolition debris, firewood, and everyday commercial use.

TRAILER SPECS • 16' long x 83" wide dump box • 14,000 lb GVWR • 4,950 lb empty weight • (2) 7,000 lb Dexter EZ-Lube axles • Electric brakes on both axles • ST235/85R16 Load Range E tires • 2-5/16" adjustable coupler • 10,000 lb drop-leg jack • Heavy-duty diamond plate fenders

DUMP BODY • 24" tall 10-gauge steel sides • Heavy-duty 7-gauge steel floor • 8" integrated I-beam frame and tongue • 3" channel crossmembers – 16" on center • 520 scissor hoist • Power up / power down hydraulic system • Pistol-grip control with 10' cord • Dual-action rear doors / spreader gate • 6' equipment ramps • Rear stabilizer stands • (4) 5/8" D-rings inside the box • Crank-style roll tarp • Lockable battery and hydraulic pump box • Deep-cycle battery with onboard charger • Spare tire rack • Sealed LED lights

With nearly 10000 bs of payload capacity, this trailer can do more than dump material. Load your skid steer or compact equipment using the 6' ramps, haul it to the job, then put the dump body to work when you get there.

? Branding Iron Trailer – Falcon, Colorado ? Trades Welcome
