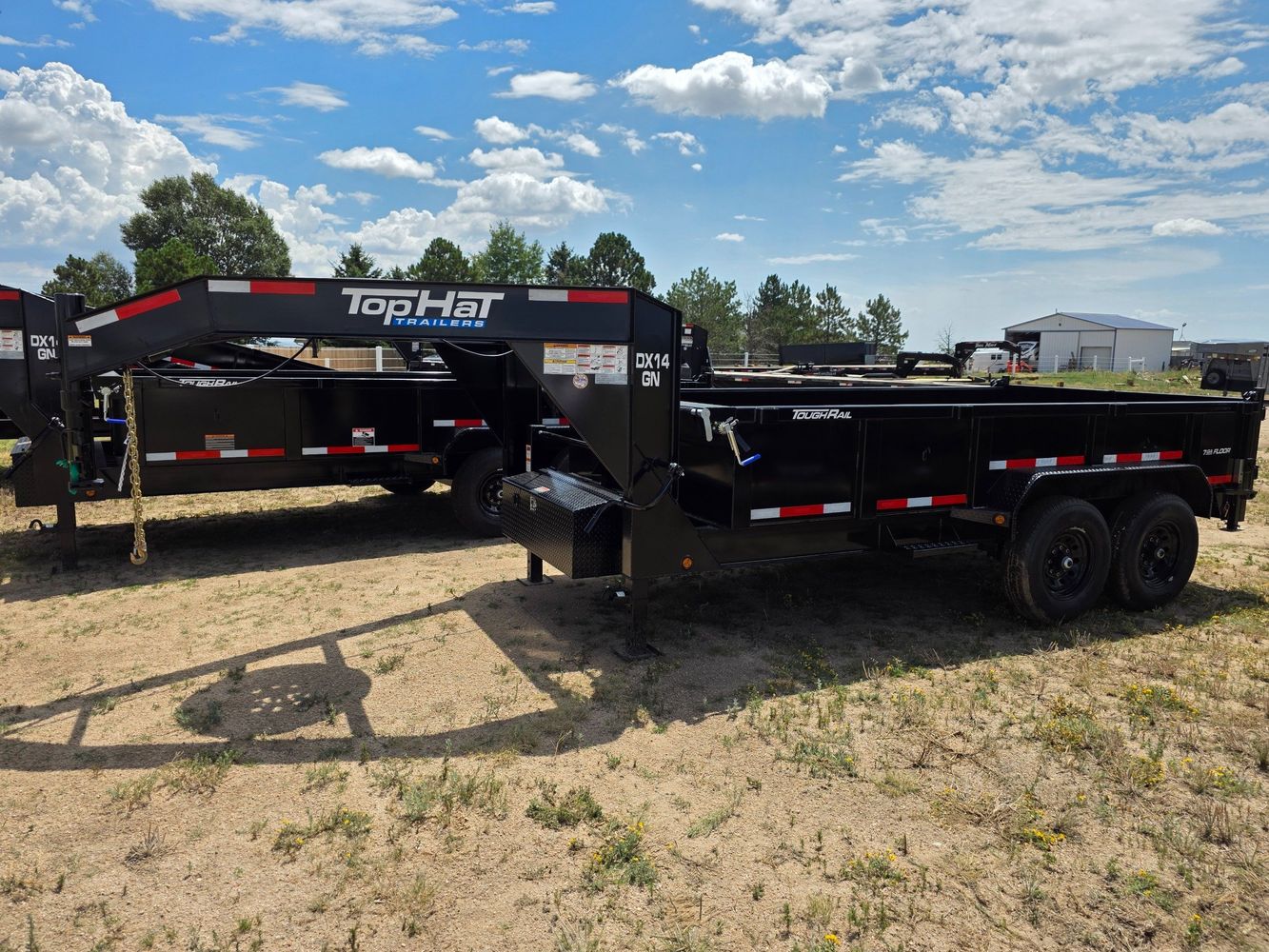

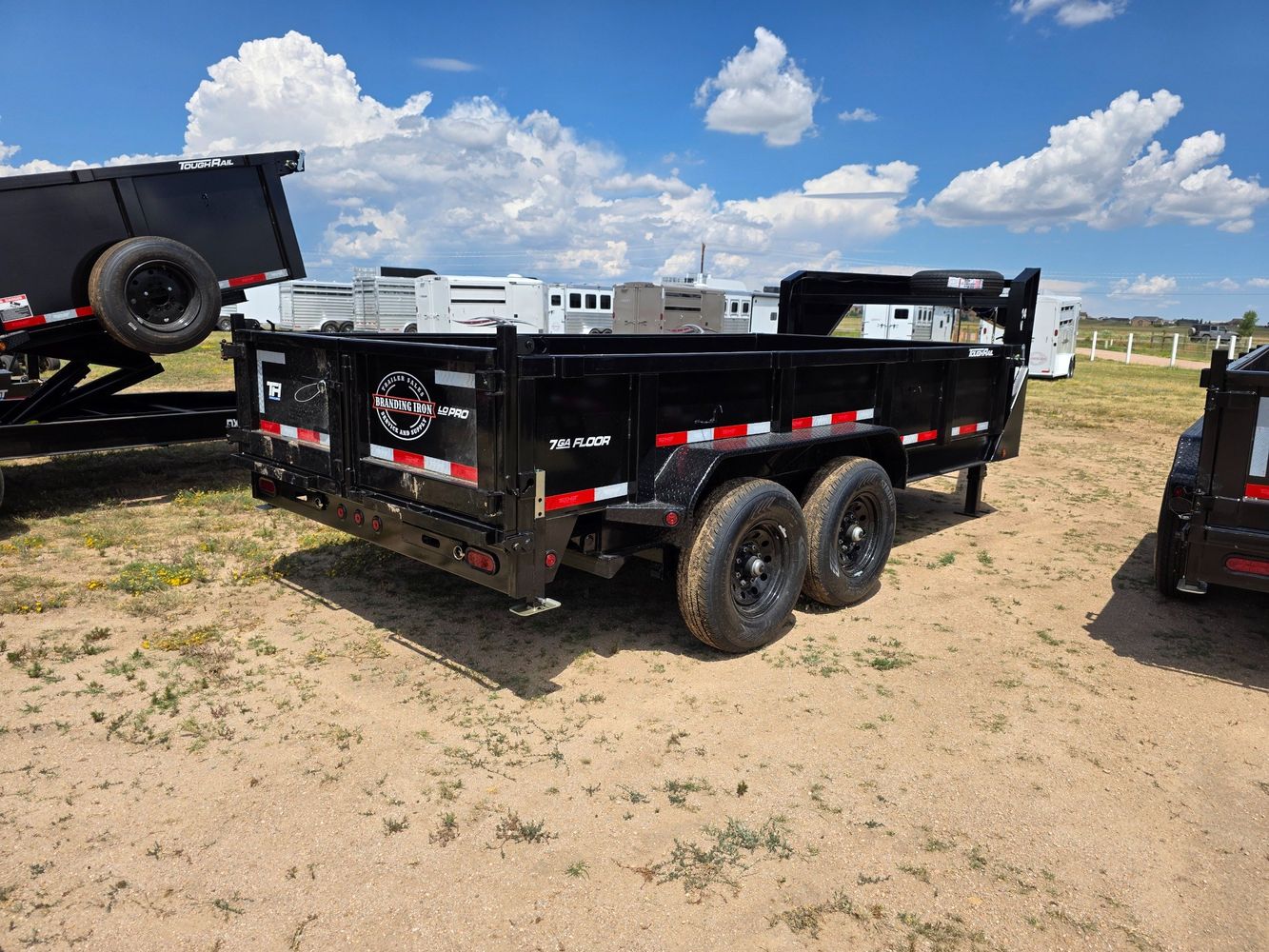

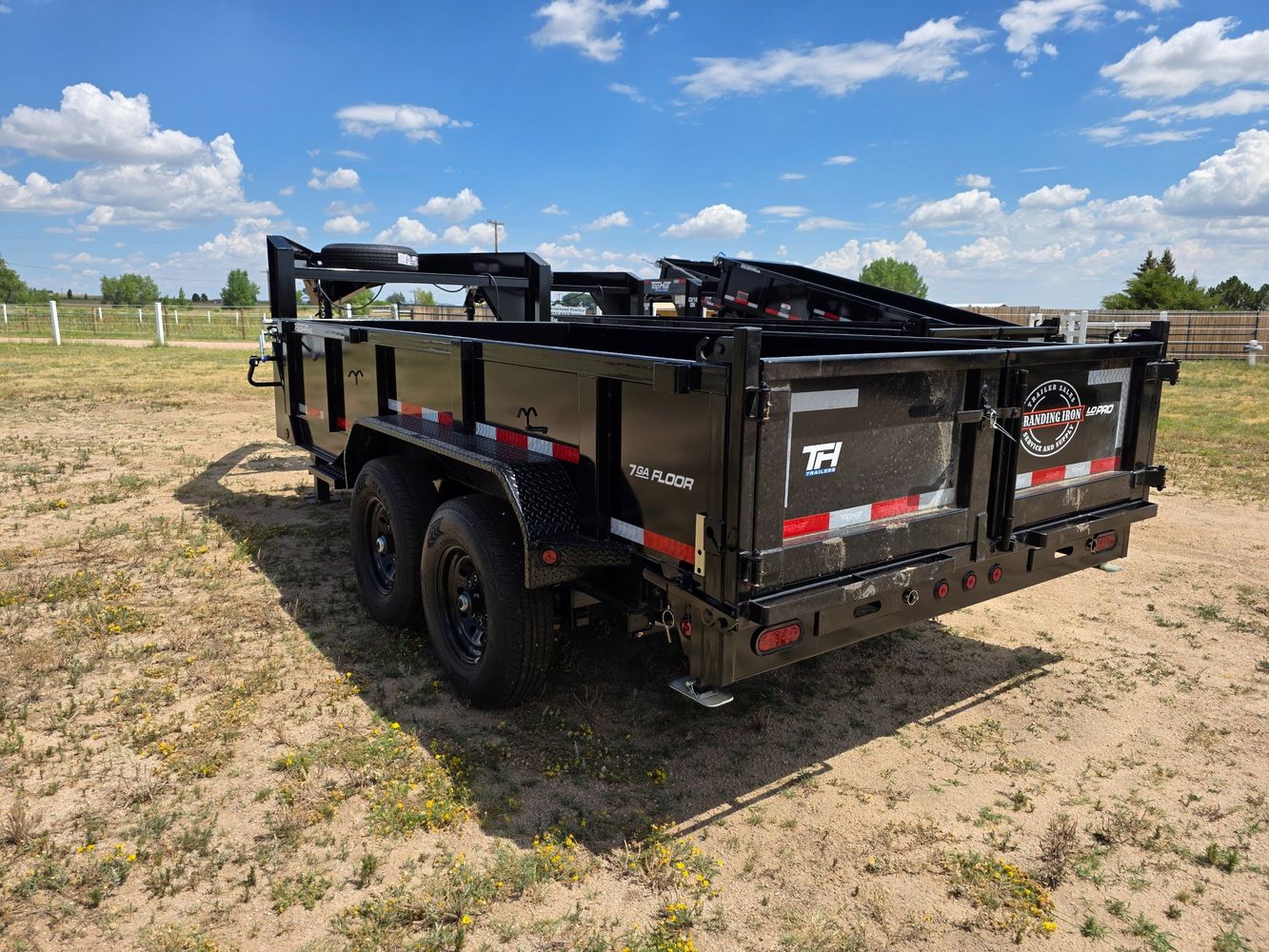

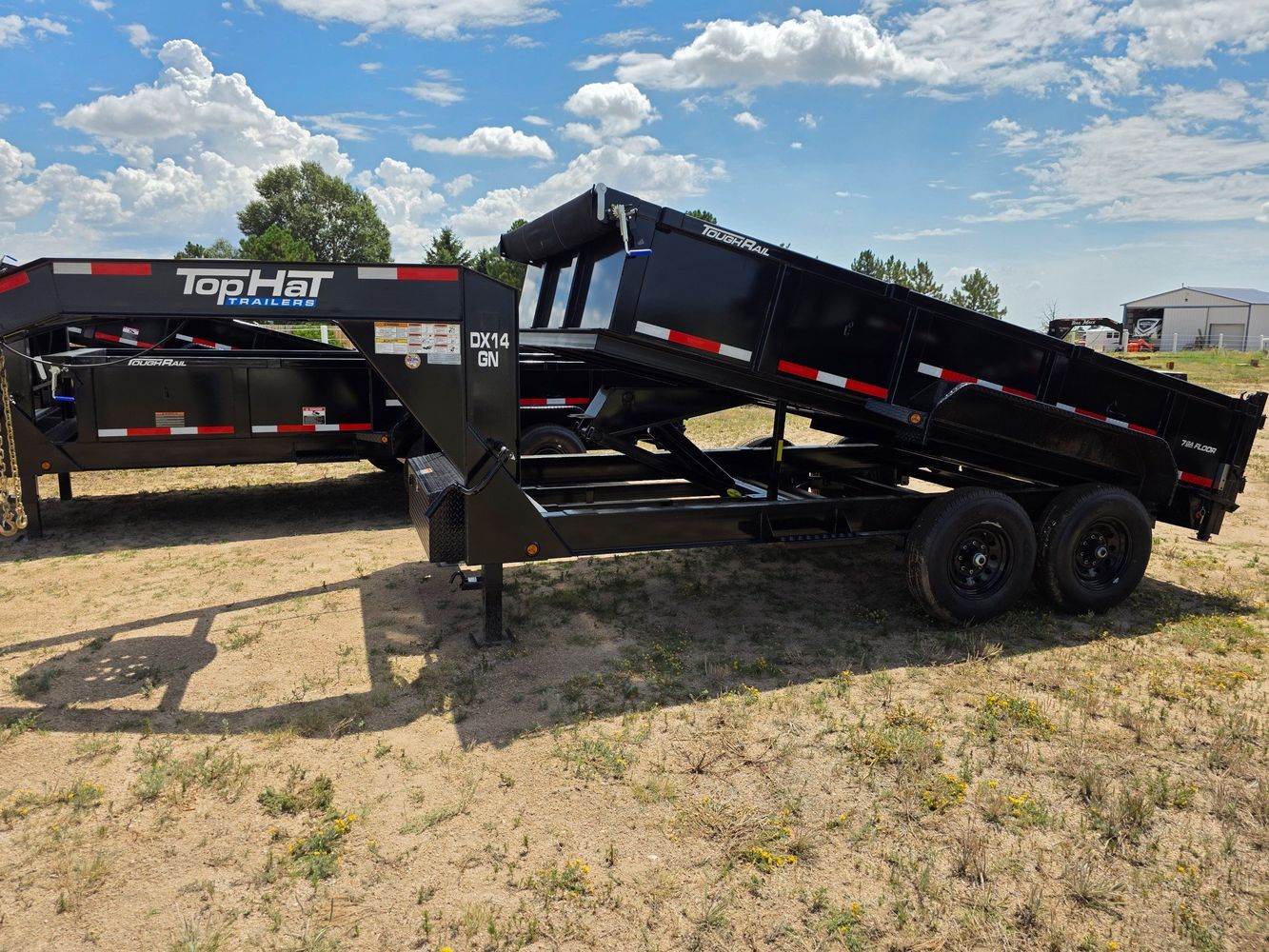

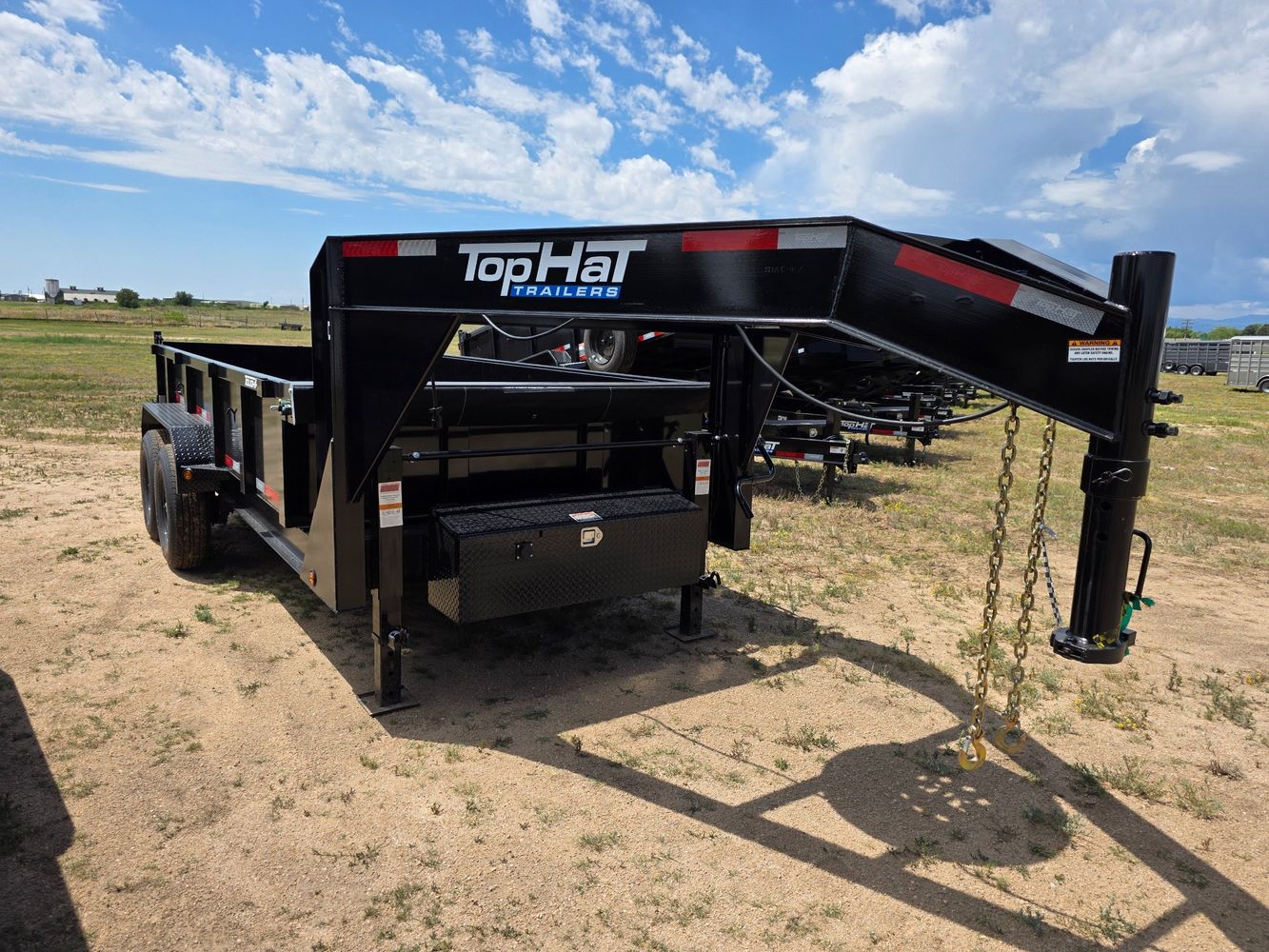

2026 Top Hat DX14GN 14' x 83" Gooseneck Dump Trailer (14,000 GVWR)

Built for serious work, the 2026 Top Hat DX14GN Gooseneck Dump Trailer combines the stability of a gooseneck hitch with the rugged construction Top Hat is known for. Featuring a heavy-duty 8" I-beam frame, 10" I-beam neck, and a durable 7-gauge steel floor, this trailer is ready for contractors, ranchers, excavators, and anyone who needs dependable hauling and dumping performance.

The gooseneck design offers improved towing stability, increased payload confidence, and better weight distribution for heavy loads.

Standard Features

• 14' x 83" Gooseneck Dump Trailer
• 14,000 lb GVWR
• ST235/80R16 Load Range E Tires on 8-Hole Wheels
• (2) 7,000 lb Dexter Axles
• Electric Brakes on Both Axles
• EZ Lube Hubs
• Heavy-Duty 2-5/16" Adjustable Round Gooseneck Coupler
• Dual 10,000 lb Drop-Leg Jacks
• Heavy-Duty Diamond Plate Double-Broke Fenders
• 83" Inside Box Width
• 24" Tall 10-Gauge Steel Sides
• Heavy-Duty 7-Gauge Steel Floor
• Dual-Action Swing-Out Rear Doors with One-Piece Spreader Gate
• 6' Slide-In Channel Loading Ramps
• (4) Heavy-Duty 5/8" D-Rings
• Spare Tire Rack
• Driver-Side Step
• Lockable Battery & Pump Box
• Crank-Style Roll Tarp with Tie-Downs
• Rear Stabilizer Stands
• Breakaway Kit with Charger
• Sealed Flush-Mount LED Lighting
• Complete Wiring Harness
• DOT Reflective Tape
• Primed & Painted Underside
• Black Finish

Heavy-Duty Frame Construction

• 8" I-Beam Main Frame
• 10" I-Beam Gooseneck & Risers
• 6" Channel Dump Body Frame
• 3" Channel Crossmembers on 16" Centers
• Formed Channel Uprights
• Heavy-Duty 3" x 2" x 7-Gauge Rectangular Tube Top Rail

Hydraulic Dump System

• Heavy-Duty 520 Scissor Hoist
• Power Up / Power Down / Gravity Down Operation
• Pistol Grip Controller with 10' Cord
• Safety Prop
• Caulked Dump Body Seams
• Deep Cycle 12-Volt Marine Battery
• 110-Volt / 5-Amp Battery Charger

• Jumbo 40" Side Step
• Matching Spare Tire

Whether you're hauling gravel, demolition debris, rock, dirt, equipment, or firewood, the Top Hat DX14GN delivers the strength, stability, and durability professionals rely on every day.

Available now at Branding Iron Trailers in Falcon, Colorado. We stock one of Colorado's largest inventories of Top Hat dump trailers, equipment trailers, utility trailers, horse trailers, and livestock trailers. Financing and trades are welcome. Stop by Branding Iron Trailers today and let our experienced team help you find the perfect trailer for your work or ranch.
