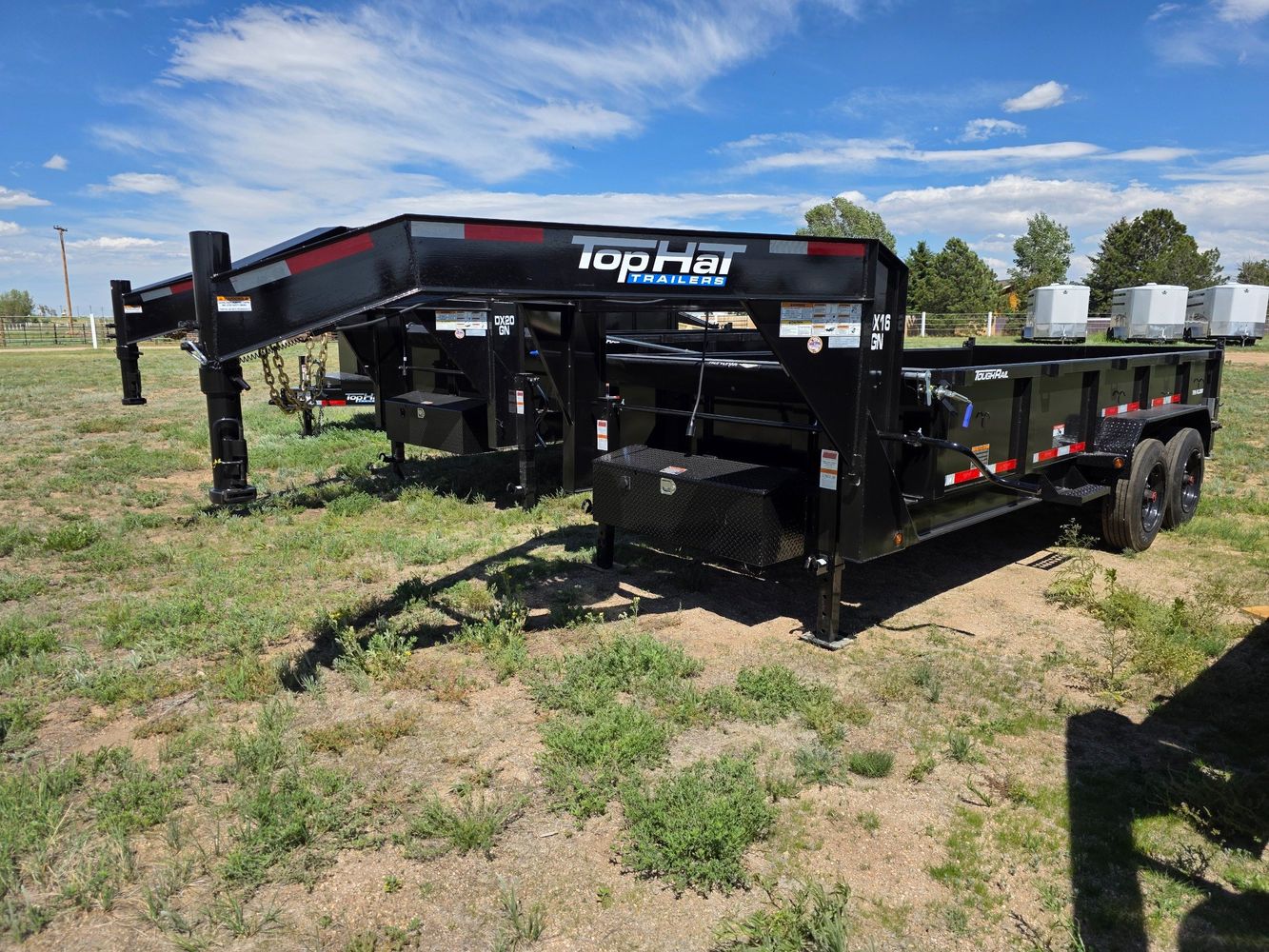

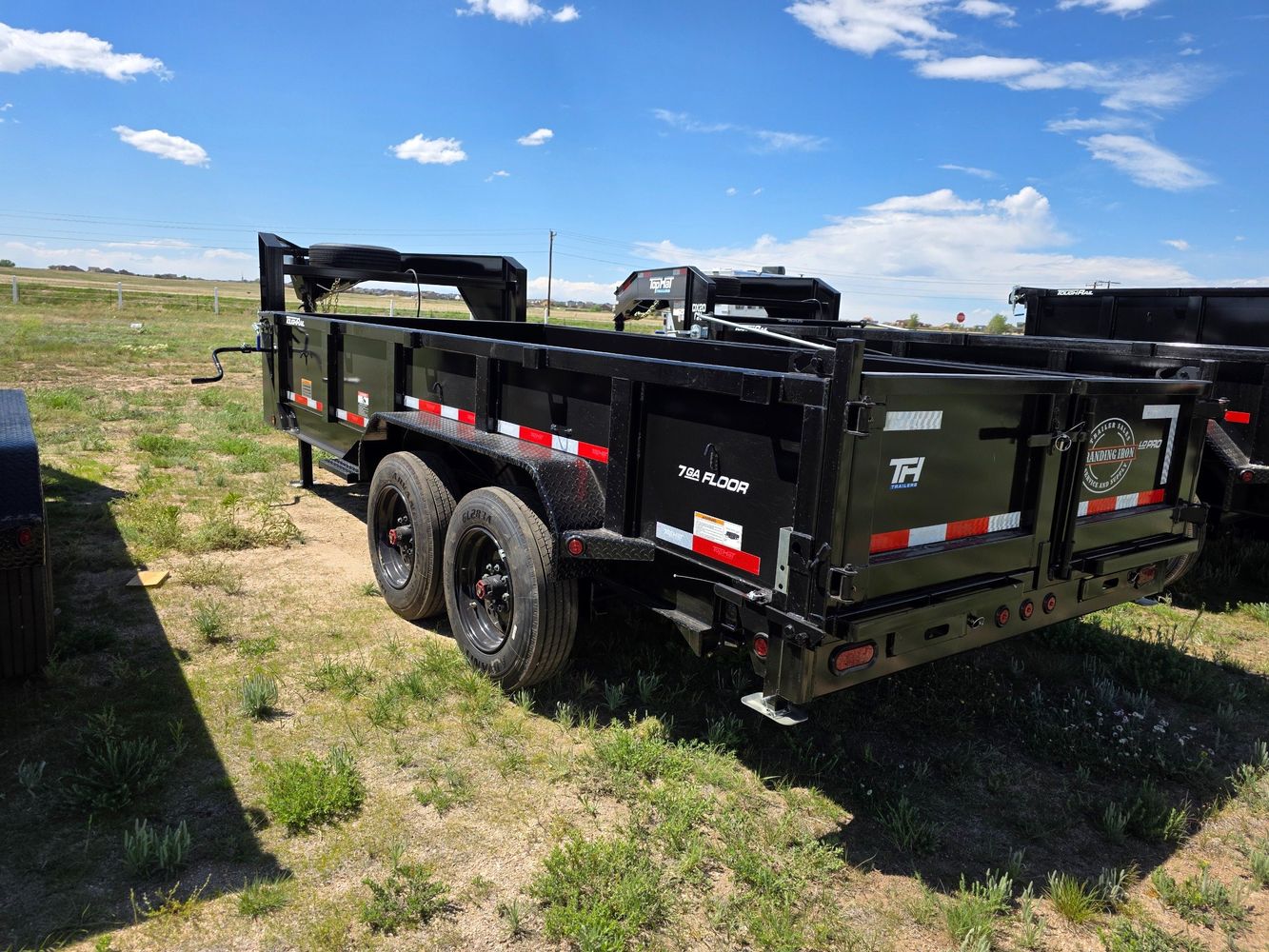

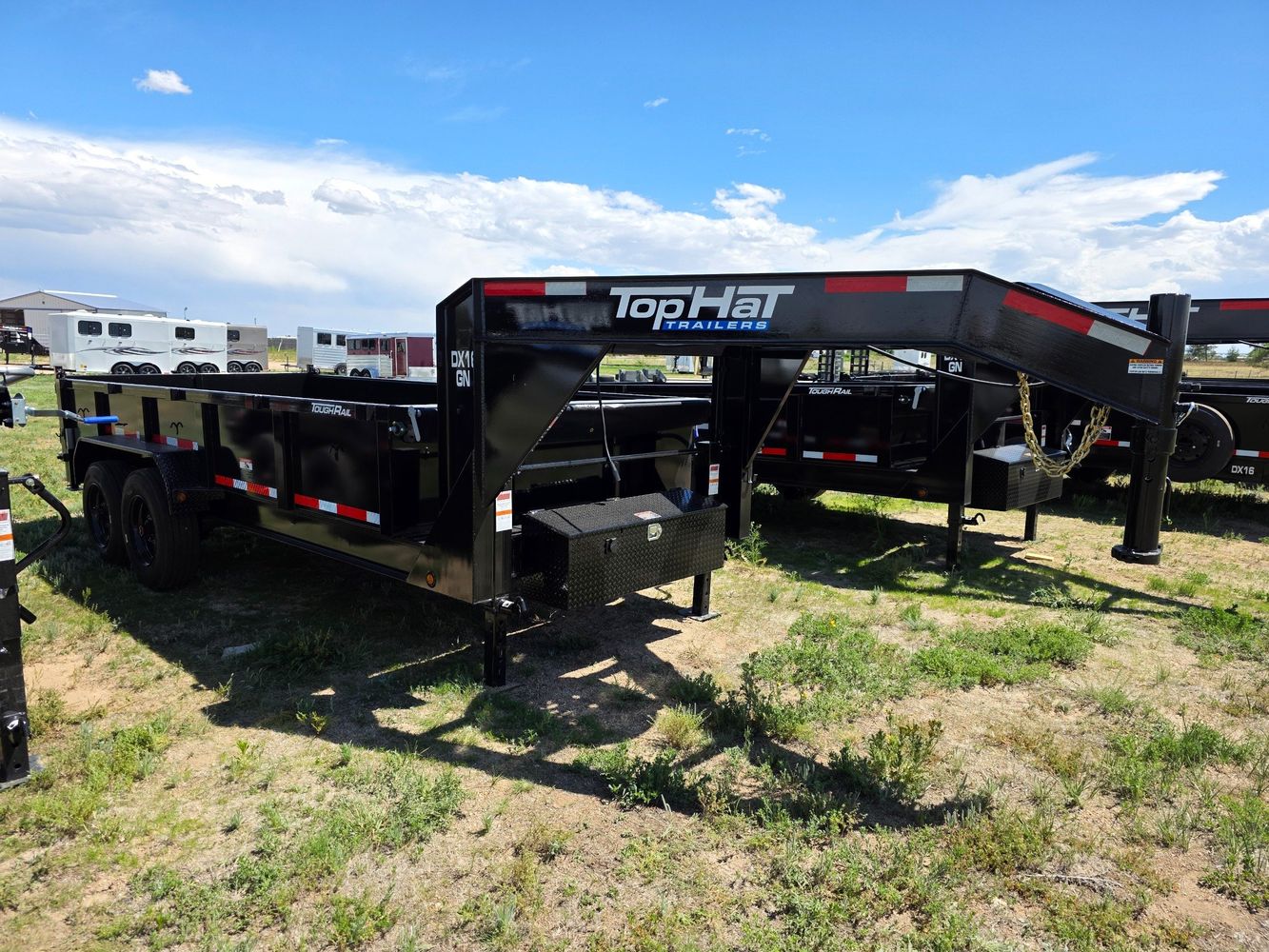

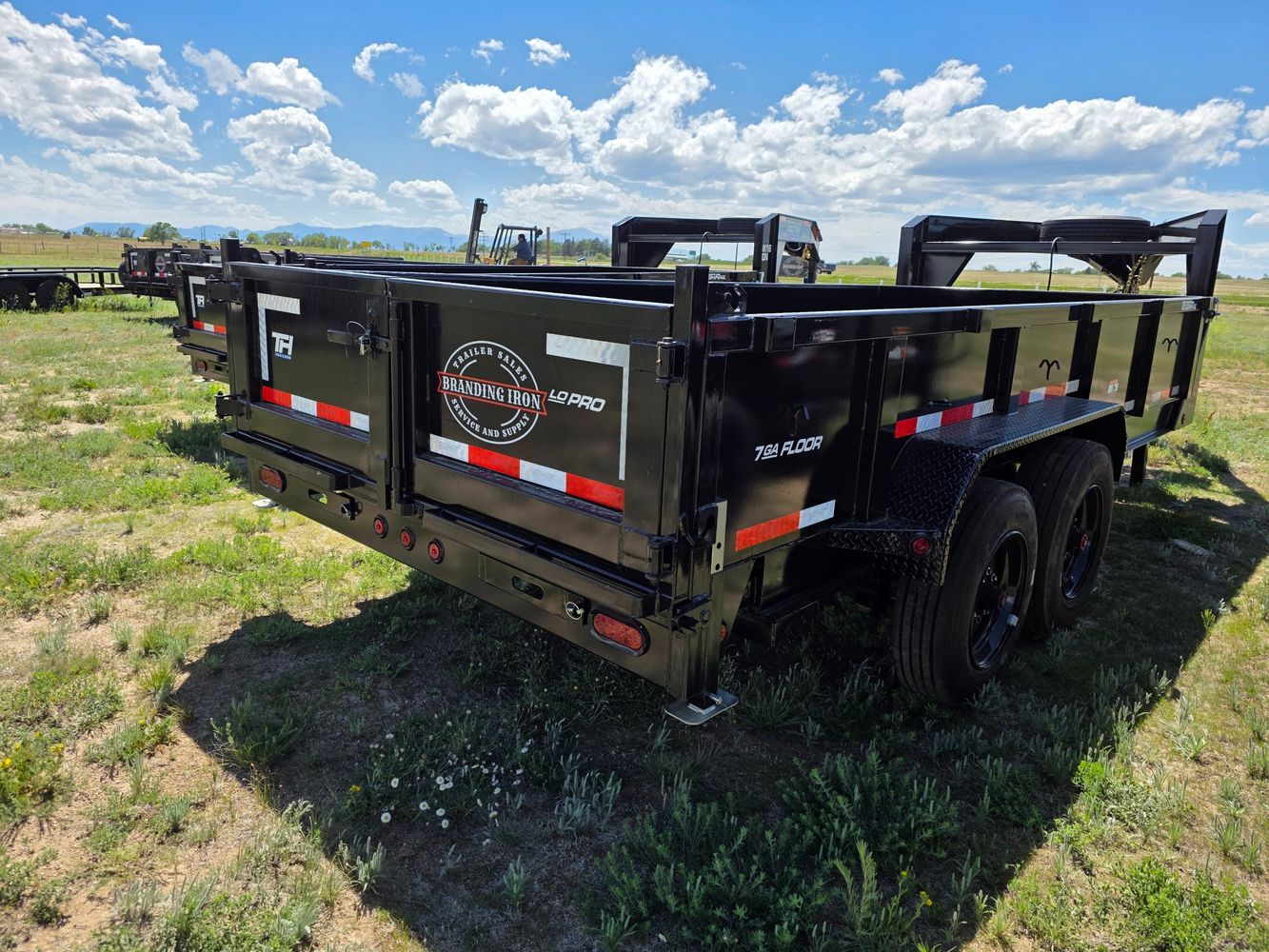

LOW PROFILE GOOSENECK DUMP 16K 16'

Frame Structure

• Frame: 8" I-Beam
• Neck & Risers: 10" I-Beam
• Sides: 24" Tall 10 GA Sheet Metal w/Toprail
• Floor: 7 GA Sheet Metal
• Toprail: Rigid 3x2x7 GA Rectangular Tubing
• Uprights: Formed Channel
• Dump Body Frame: 6" Channel
• Crossmembers: 3" Channel 16" OC

Standard Equipment

• ST215/75R/17.5 LRH Tires on 8-Hole
• 8000# Dexter Oil Bath 1/2 Cambered Axles w/5/8" Lug Studs
• Electric Brake on 2-Axles w/2 1/4" Brake Pads
• 2 5/16" Round Adjustable Coupler
• Dual 10000# Drop Leg Jacks
• HD Diamond Plate Fender (Double Broke)
• Width: 83" Inside Box
• Break Away Unit w/Charger
• DOT Reflective Tape
• Primed & Painted Underside
• Dual Action Swing Out Doors/1 Piece Spreader Gate
• Slide-N Ramp 6' Channel
• 5/8" D-Rings in Box (4)
• Spare Rack
• Sealed Flush Mount LED Lights
• Side Step (Driver Side)
• Wiring Harness
• Lockable Battery/Pump Box

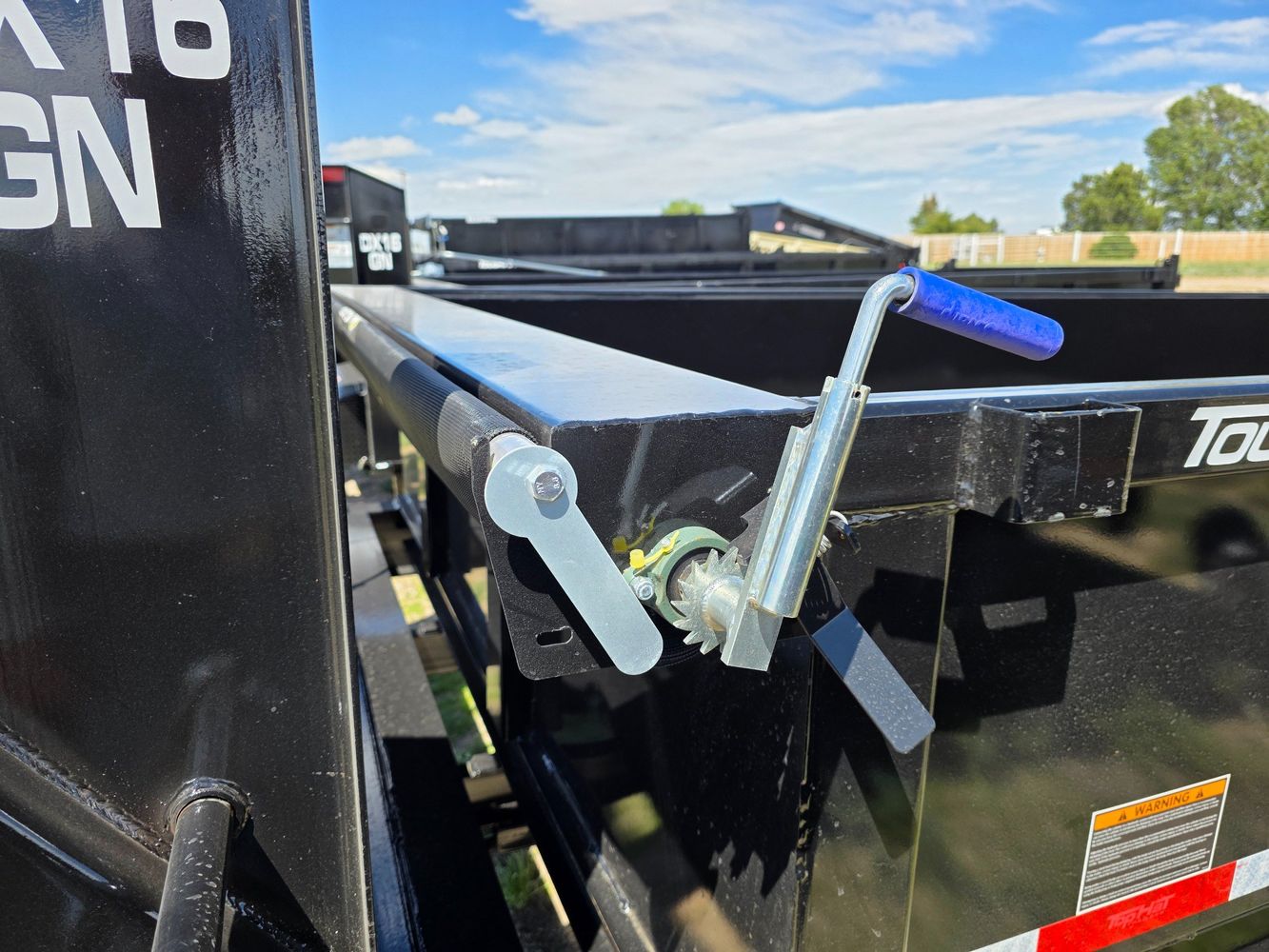

• Crank Style Roll Tarp & Tie Downs
• Rear Stabilizer Stands
• Color: Black

Dump Components

• 520 Scissor Hoist 0n 14'-16'
• Power Up/Power Down/Gravity Down
• Control: Pistol Grip w/10' Cord
• Safety Prop
• Caulked Seams on Dump Body
• Deep Cycle 12V Marine Battery
• 110 Volt-5 Amp Charger
