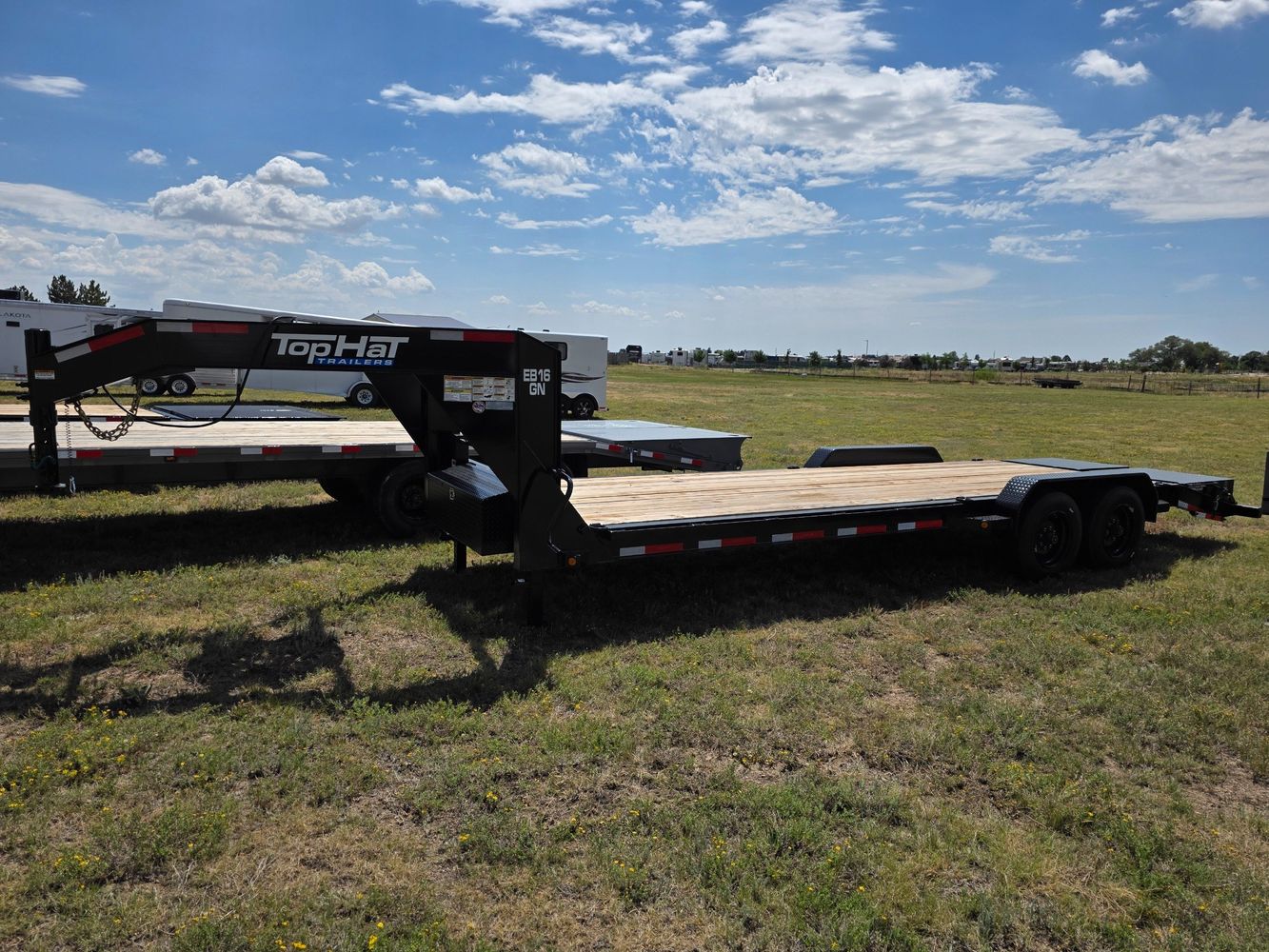

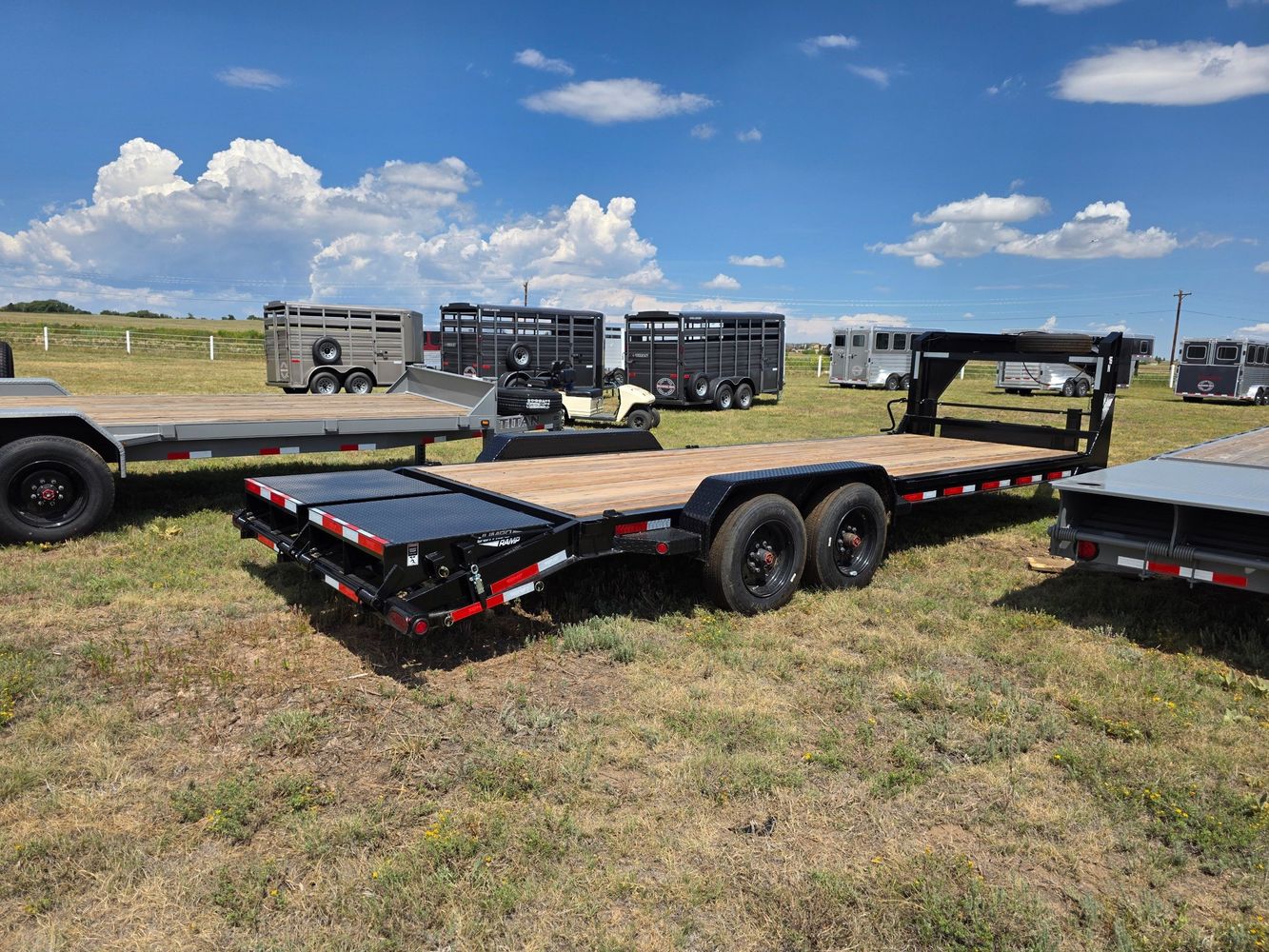

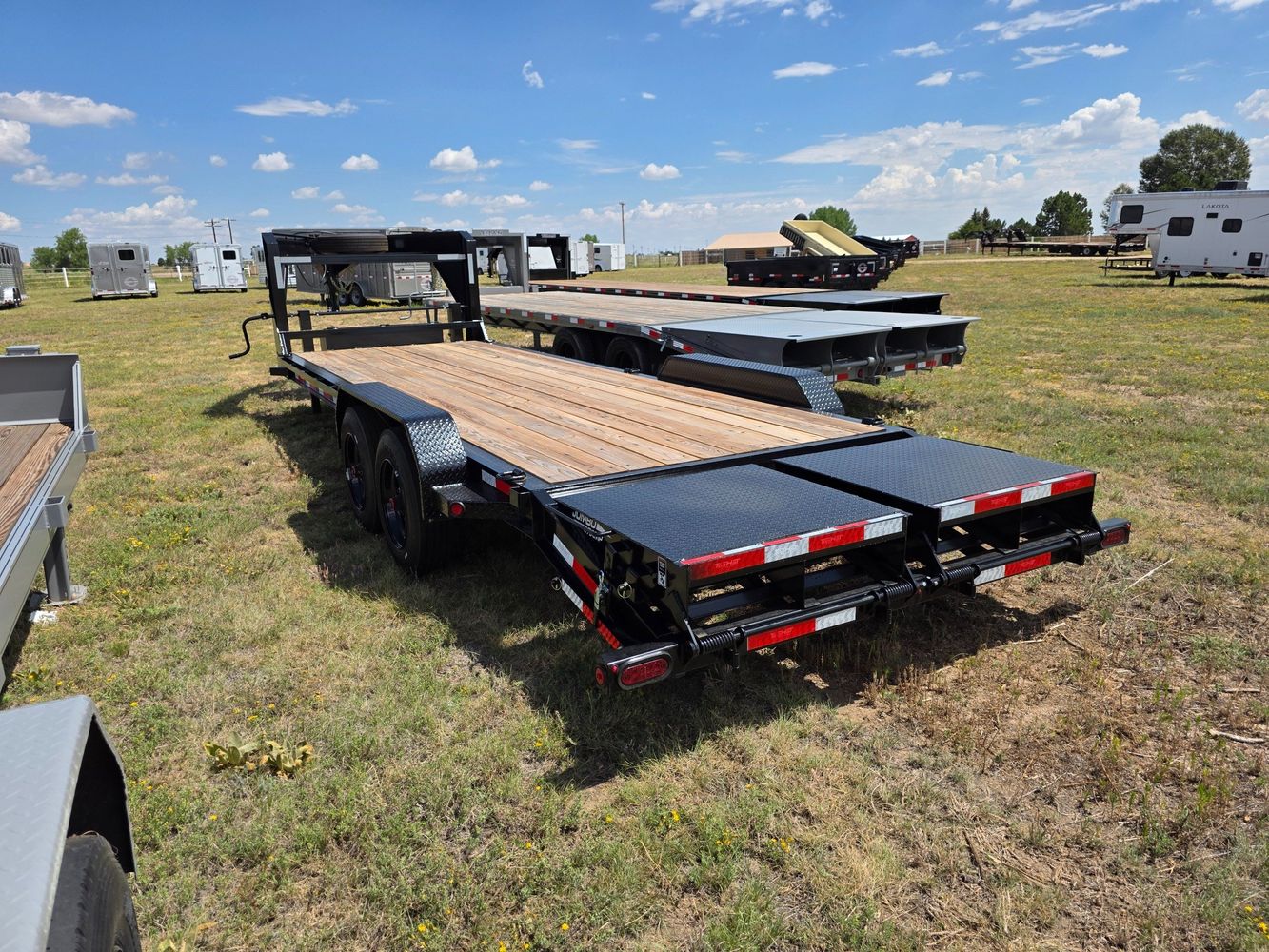

2026 Top Hat EB16GN 24' x 83" Gooseneck Equipment Trailer (17,500 GVWR)

Built for serious hauling, the 2026 Top Hat EB16GN Gooseneck Equipment Trailer delivers commercial-grade strength for contractors, ranchers, and equipment operators who demand durability and dependable performance. With a heavy-duty 8" I-beam frame, 10" I-beam neck, and 8,000 lb Dexter oil bath axles, this trailer is designed to confidently haul skid steers, tractors, mini excavators, hay, building materials, and more.

The gooseneck design provides improved stability, tighter turning, and greater towing confidence for heavy loads.

Standard Features

• 24' x 83" Gooseneck Equipment Trailer
• 17,500 lb GVWR
• ST215/75R17.5 Load Range H Commercial Tires
• (2) 8,000 lb Dexter Oil Bath Axles
• Heavy-Duty 5/8" Wheel Studs
• Electric Brakes on Both Axles
• Slipper Spring Suspension
• Heavy-Duty 2-5/16" Round Adjustable Gooseneck Coupler
• Dual 10,000 lb Drop-Leg Jacks
• Heavy-Duty 8" x 13 lb I-Beam Main Frame
• 10" x 12 lb I-Beam Neck & Risers
• 3" Channel Crossmembers on 16" Centers
• Flush Floor Design
• Treated Pine Decking
• 2' Diamond Plate Dovetail
• Stake Pockets with 3/8" x 2" Rub Rail
• (6) Heavy-Duty 5/8" D-Rings
• Lockable Toolbox Between the Risers
• Spare Tire Rack
• Heavy-Duty Diamond Plate Double-Broke Fenders
• Diamond Plate Fender Steps & Braces
• Sealed Flush-Mount LED Lighting
• C7omplete Wiring Harness
• Breakaway Kit with Charger
• DOT Reflective Tape
• Stock Color Finish

• Matching ST215/75R17.5 Load Range H Spare Tire

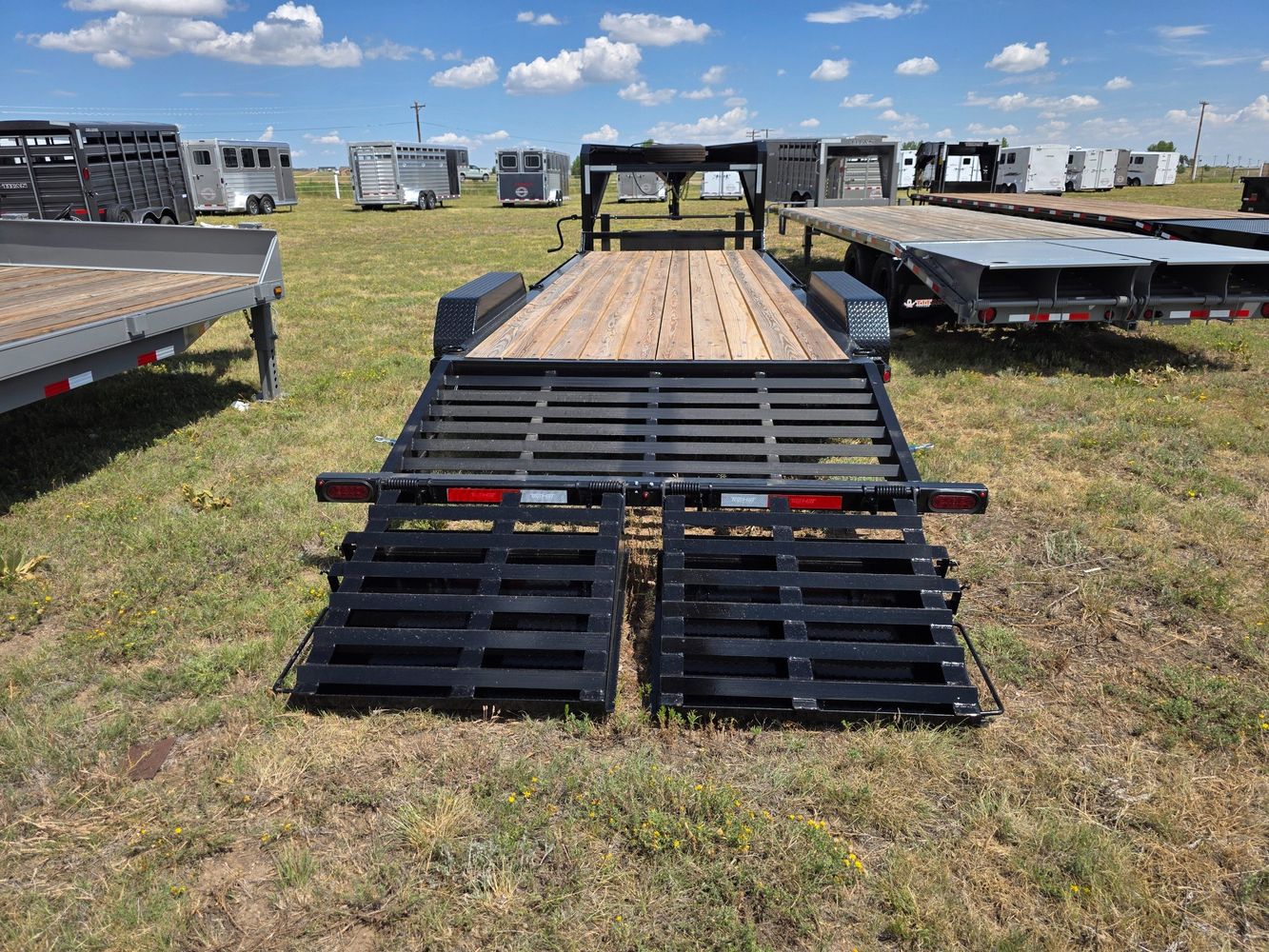

• Heavy-Duty Jumbo Loading Ramps (available on trailers 20' and longer)

Whether you're hauling heavy equipment to the jobsite, transporting tractors around the ranch, or moving machinery across Colorado, the Top Hat EB16GN is engineered to provide the strength, stability, and reliability professionals depend on.

Available now at Branding Iron Trailers in Falcon, Colorado. We stock one of Colorado's largest selections of Top Hat equipment trailers, dump trailers, utility trailers, horse trailers, and livestock trailers. Financing and trades are available. Visit Branding Iron Trailers today and let us help you find the right trailer for your work or ranch.
